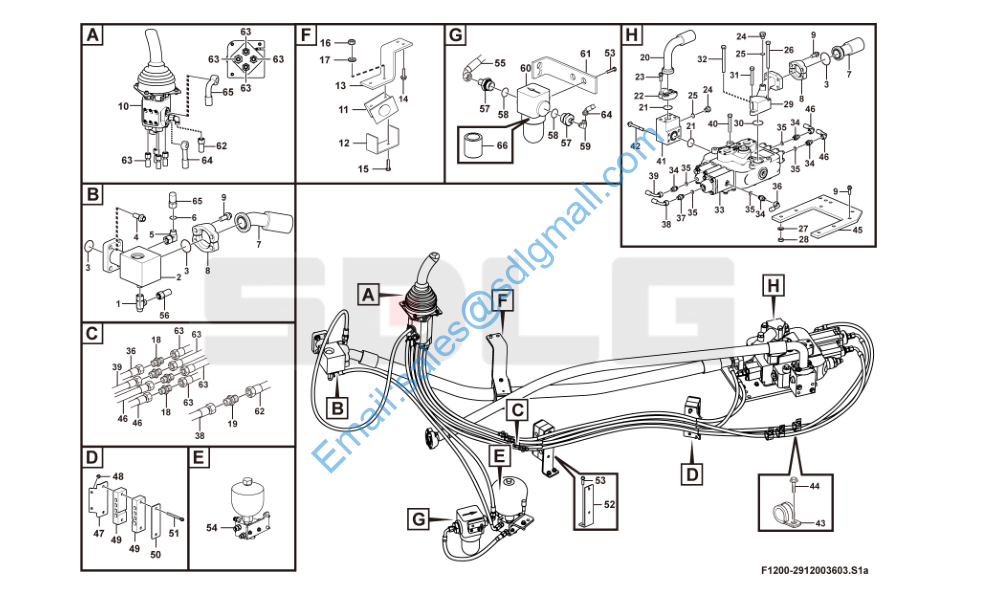

L956 液压操纵总成 Hydraulic control system F1200-2912003603

1 4120001100 三通接头EL10LOMDA3C Three-way nipple Y 1

2 29120036341 回油钢管 Pipe Y 1

3 4030000130 O形圈GB3452.1-47.5*3.55G O-ring Y 3

4 4011001375 螺栓GB16674.1-M12*30flZnyc-8.8-480 Bolt Y 4

5 4041001063 组合接头LGB143-01810 Nipple Y 1

6 4030000490 O形圈GB3452.1-10.0*1.80G O-ring Y 1

7 29120036331 多路阀回油胶管 Hose assembly Y 1

8 4041000011 分体法兰LGB117-314650 Flange half Y 2

9 4011001510 螺栓GB16674.1-M12*35flZnyc-8.8-480 Screw Y 12

10 29120031101 先导阀总成GDXS2-DT部装 Control lever N 1

11 29120030911 橡胶管夹 Clamp Y 1

12 29120032701 U型板固定板 Plate Y 1

13 29120030901 支架 Bracket Y 1

14 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480 Screw Y 2

15 4011001393 螺栓GB5782-M8*100flZnyc-8.8-480 Bolt Y 2

16 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 4

17 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 2

18 29120017721 直接头 Nipple Y 4

19 29120017731 直接头 Nipple Y 1

20 29120030831 多路阀进油胶管 Hose assembly Y 1

21 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 3

22 4041000056 分体法兰LGB117-312550 Flange half Y 2

23 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 12

24 4041000774 螺塞LGB135-01422 Plug Y 2

25 4041000767 O形圈LGB168-11124 O-ring Y 2

26 4011001558 螺栓GB5782-M12*175flZnyc-8.8-480 Screw Y 1

27 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 8

28 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 8

29 29120009161 多路阀回油钢管 Pipe Y 1

30 4030000031 O形圈GB3452.1-42.5*3.55G O-ring Y 1

31 4011001560 螺栓GB16674.1-M10*65flZnyc-8.8-480 Screw Y 1

32 4011001465 螺栓GB5782-M12*145flZnyc-8.8-480 Screw Y 1

33 4120007617 多路阀DFSY-32-18.5 Control valve Y 1

34 29120015401 接头 Nipple Y 4

35 29120014931 垫圈 Washer Y 5

36 4041001435 软管LGB125-003280 Hose assembly Y 1

37 29120007651 接头 Nipple Y 1

38 4041001186 软管LGB125-004250 Hose Y 1

39 4041002184 软管LGB125-003235 Hose assembly Y 1

40 4011001561 螺栓GB5782-M12*135flZnyc-8.8-480 Screw Y 2

41 29120019061 多路阀进油块 Valve block Y 1

42 4011001563 螺栓GB16674.1-M10*85flZnyc-8.8-480 Screw Y 4

43 4041002411 管夹LGB169-A15*10 Clamp Y 3

44 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 3

45 29120016981 多路阀固定板 Anchor plate Y 1

46 4041001951 软管LGB125-003185 Hose Y 2

47 29120017741 固定板 Anchor plate Y 1

48 4011001240 螺栓GB16674-M12*25flZnyc-8.8-480 Screw Y 2

49 29120016741 管夹 Clamp Y 4

50 29120016351 固定板 Anchor plate Y 2

51 4011001303 螺栓GB16674.1-M8*90flZnyc-8.8-480 Screw Y 4

52 29120017001 支架 Bracket Y 1

53 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 6

54 29120036181 先导油源阀组部装 Hydraulic control N 1

55 4041002660 软管LGB125-004048 Hose assembly Y 1

56 4041001145 软管LGB125-004125 Hose assembly Y 1

57 29120015081 接头 Nipple Y 2

58 4030000276 O形圈GB3452.1-32.5*2.65G O-ring Y 2

59 4041001023 组合接头LGB143-01608 Nipple Y 1

60 4120001954 滤油器PLF-C30*10 Hydraulic fluid filter Y 1

61 29030037021 板 Plate Y 1
62 4041002256 软管LGB124-004090 Hose assembly Y 1
63 4041001293 软管LGB124-003090 Tube lgb124-003090 Y 4
64 29120017131 先导阀进油软管 Hose assembly Y 1
65 29120033411 先导阀回油胶管 Hose assembly Y 1
66 4120001954001 滤芯（先导滤清器滤芯)PLFX-30X10 Filter insert Y 1
