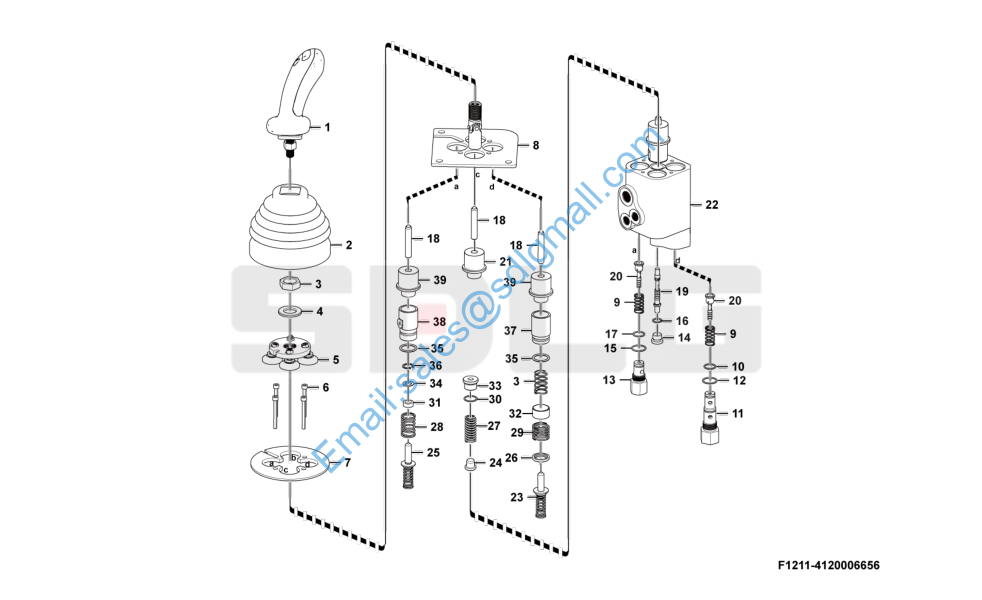

L956 先导阀总成GDXS2-DT Control lever F1211-4120006656

1 4120006656001 手柄组件DXS-01(w1) Handle Y 1

2 4120005030017 橡胶罩DXS-09 Cover Y 1

3 4013000120 螺母GB6172.1-M20EpZn-05 Nut Y 1

4 4120002027037 小垫圈-20-140HVGB848-85 Washer Y 1

5 4120005030001 固定板组件 DXS-04-00 Plate Y 1

6 4014000406 螺钉GB70.1-M6*55EpZn-8.8 Screw Y 4

7 4120005030003 罩板 DXS-06a Plate Y 1

8 4120006656002 安装板组件DXS-07a Plate N 1

9 4120002027009 弹簧DXS-16-01 Spring Y 4

10 4120006656003 O型圈 16X1.8 GB3452.1-2005 O-ring N 1

11 4120002027005 顺序阀座DXS-18-01 Valve seat Y 1

12 4120005030002 O形圈24*2.4 GB3452.1-2005 O-ring Y 1

13 4120002027006 计量阀座DXS-16-04 Valve seat Y 3

14 4120002432424 螺塞DXS-18-04 Plug Y 1

15 4120005030004 O形圈18*2.1 GB3452.1-2005 O-ring Y 3

16 4120000448012 O型圈11.8X2.1GB3452.1-82 O-ring Y 1

17 4120002027008 O型圈12.5X1.8GB3452.1-82 O-ring Y 4

18 4120005030006 压销 DXS-05-00 Dowel Y 4

19 4120005030007 阀芯 GDXS-02a Valve rod Y 1

20 4120002027011 计量阀芯DXS-16-03 Valve rod Y 4

21 4120005030008 轴套 DXS-11 Bushing Y 1

22 4120005030009 阀体 GDXS-08a Valve body Y 1

23 4120005030010 压杆组件 DXS-27-03-00 Control rod Y 2

24 4120005030011 弹簧座 GDXS-03a Spring seat Y 1

25 4120002027049 压杆1DXS-10-01 Plate Y 2

26 4120005030012 弹簧座 DXS-31 Spring seat Y 1

27 4120005030013 弹簧 GDXS-05a Spring Y 1

28 4120002027015 弹簧DXS-17 Spring Y 3

29 4120005030014 复位弹簧 DXS-29 Spring Y 1

30 4120002027007 O型圈18X1.8GB3452.1-82 O-ring Y 1

31 4120002027001 C1型密封件10X16X6 C1 10 Sealing ring Y 4
32 4120005030015 弹簧座 DXS-28 Spring seat Y 1
33 4120005030016 螺塞 GDXS-04 Plug Y 1
34 4120002027023 密封圈盖DXS-10-07 Sealing cover Y 4
35 4120002027020 O型圈22.4X2.8GB3452.1-82 O-ring Y 4
36 4120001966014 挡圈17 GB893.1-86 Retaining ring Y 4
37 4120005030005 盖组件DXS-27-01-00 Cover Y 1
38 4120002027021 盖DXS-10-02-01 Cover Y 3
39 4120006656004 电磁铁组件GDXS-06w1 Solenoid valve Y 3
