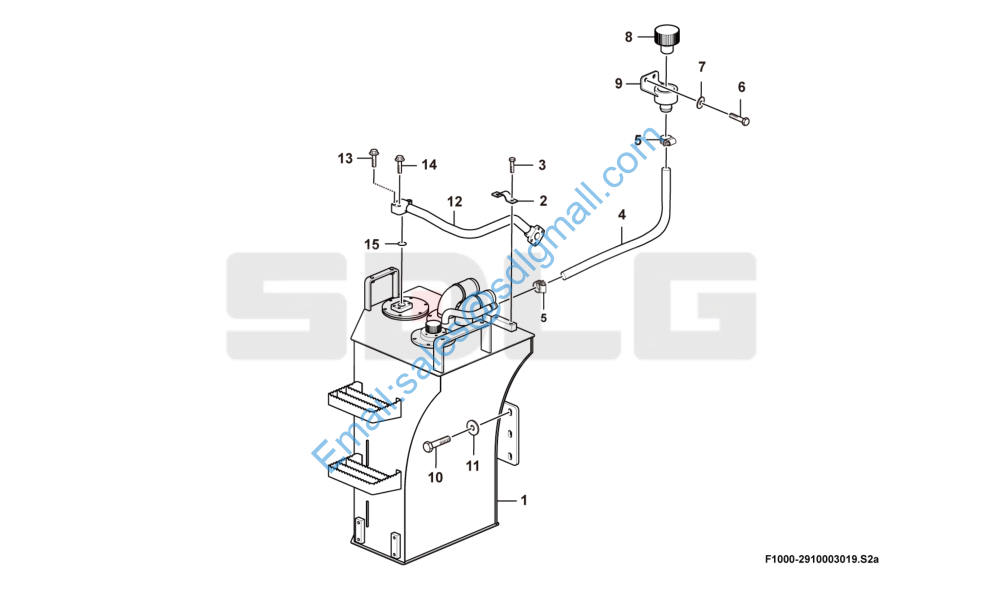

L955FC 液压油箱总成 Hydraulic fluid tank assembly F1000-2910003019

1 29100030202 液压油箱 Hydraulic fluid tank Y 1

2 29140011871 管夹 Clamp Y 1

3 4011001240 螺栓GB16674-M12*25flZnyc-8.8-480 Screw Y 2

4 29100030221 呼吸器胶管 Hose Y 1

5 4017000008 喉箍JB8870-d40 Clamp Y 2

6 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 2

7 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 2

8 4120001088 换气过滤器L1.0807-31 Breather cap Y 1

9 29100020221 \呼吸器固定座 Seat Y 1

10 4011001511 螺栓GB5783-M16*40flZnyc-8.8-480 Bolt Y 7

11 29100011031 垫圈 Washer Y 7

12 29100022801 散热器回油钢管 Pipe Y 1

13 4011001288 螺栓GB16674.1-M10*50flZnyc-8.8-480 Screw Y 2

14 4011001298 螺栓GB16674.1-M10*55flZnyc-8.8-480 Screw Y 2

15 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 1
