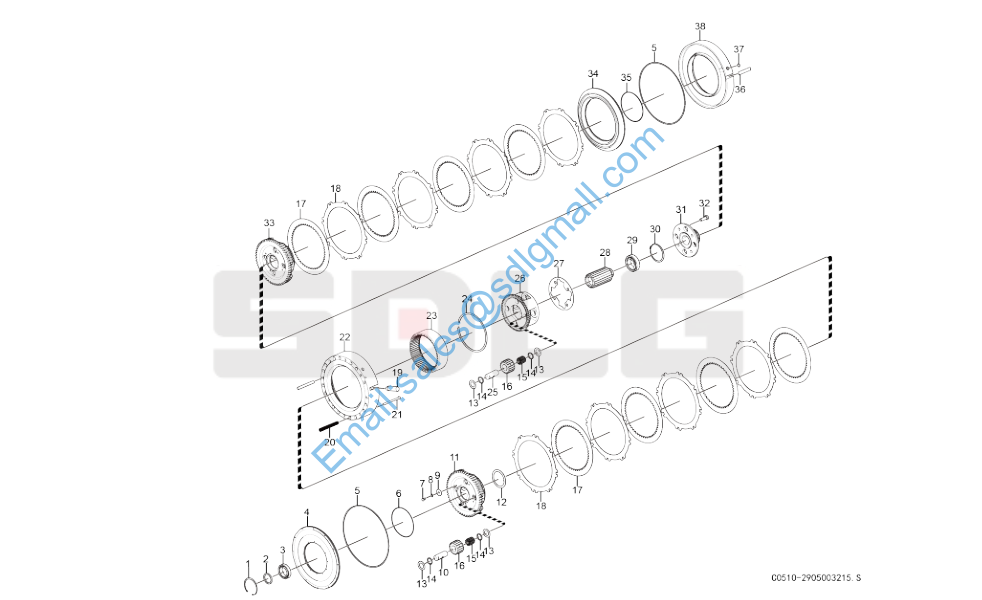

L955FC 一倒挡总成 Planet gear kit C0510-2905003215

1 4015000017 挡圈GB893.1-90-65Mn Retaining ring Y 1

2 3030900168 间隔套 Spacer sleeve Y 1

3 4021000011 滚动轴承GB276-6010 Ball bearing Y 1

4 29050032171 倒档活塞 Piston Y 1

5 3030900143 外密封环 Sealing ring N 2

6 3030900163 内密封环 Sealing ring N 1

7 3030900170 螺栓 Screw Y 4

8 4015000036 垫圈GB93-8-65Mn Spring washer Y 4

9 29050023971 止动垫圈 Stop washer Y 4

10 29050023581 倒档行星轴 Planet gear shaft Y 4

11 29050032191 倒档行星架 Planet carrier Y 1

12 29050023491 隔套 Spacer sleeve Y 1

13 29050020461 垫片 Shim Y 16

14 29050022651 挡圈 Retaining ring Y 16

15 4090000311 滚针GB309-4*40-GCr15 Needle roller Y 200

16 29050023471 行星轮 Planet gear Y 8

17 2030900028 倒档一档主动片 Friction disc Y 10

18 3030900140 倒档一档从动片 Friction disc Y 10

19 3030900161 圆柱销 Pin Y 1

20 3030900141 弹簧 Spring Y 15

21 3030900142 弹簧销轴 Pin Y 15

22 29050032201 摩擦片隔离架总成 Separator Y 1

23 29050023451 倒档内齿圈 Gear ring Y 1

24 3030900156 挡圈 Retaining ring Y 1

25 29050023571 一档行星轴 Planet gear shaft Y 4

26 29050023431 一档行星架 Planet carrier Y 1

27 29050022671 止动盘 Stop plate Y 1

28 29050023481 太阳轮 Sun gear Y 1

29 4021000019 滚动轴承GB276-6210N Ball bearing Y 1

30 4015000024 挡圈GB894.1-90-65Mn Retaining ring Y 1

31 29050022711 直接档连接盘 Flange Y 1
32 4011001107 螺栓GB5786-M141.540-8.8 Screw Y 4
33 29050023461 内齿圈 Gear ring Y 1
34 29050022592 一档活塞 Piston Y 1
35 3030900113 密封环 Sealing ring N 1
36 3030900159 固定板 Anchor plate Y 1
37 3030900146 矩形密封圈 Sealing ring Y 1
38 3030900145 一档油缸 Clutch cylinder Y 1
