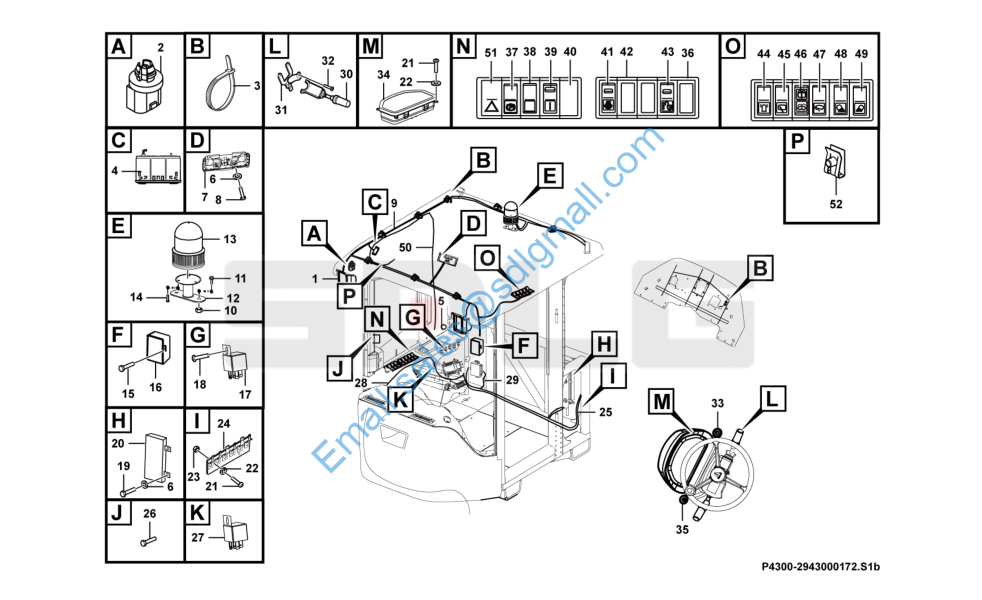

L938F 驾驶室电气总成 Cab electric system P4300-2943000172

1 4130001685 工作灯148*86-H3-24V Lamp Y 4

2 11220417 温度传感器 Temperature sensor Y 1

3 4190001839 扎丝LG13-ZS4*160 Cable tie Y 60

4 29430000381 收音机总成 Radio Y 1

5 4130000749 点烟器8EZ008022-001 Cigarette lighter Y 1

6 4015000424 垫圈GB97.1-6flZnyc-300HV-480 Washer Y 9

7 4130001413 室内灯24-6212-24V Lamp Y 1

8 4014000518 螺钉GB818-M6*20flZnyc-4.8-480 Screw Y 2

9 29430001741 驾驶室线束 Wiring harness Y 1

10 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 2

11 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 2

12 29370023121 旋转警示灯支架 Bracket Y 1

13 11215524 旋转警示灯 Rotating beacon Y 1

14 4014000037 自攻螺钉GB845-ST4.2*19-C-H Screw Y 3

15 4011001275 螺栓GB16674.1-M6*16flZnyc-8.8-480 Screw Y 9

16 11215636 变压器 Voltage converter Y 1

17 4130000869 中间继电器024-1Z6GD2 Relay Y 5

18 4014000512 螺钉GB818-M6*12flZnyc-4.8-480 Screw Y 5

19 4014000524 螺钉GB818-M6*16flZnyc-8.8-480 Screw Y 4

20 4130002470 中央电器控制盒H1-F29R16-02 Fuse and relay unit Y 1

21 4014000523 螺钉GB818-M5*16flZnyc-4.8-480 Screw Y 11

22 4015000431 垫圈GB97.1-5flZnyc-300HV-480 Washer Y 11

23 4013000377 螺母GB6170-M5flZnyc-8-480 Nut Y 7

24 29370024041 固定板 Plate Y 1

25 29430001733 仪表台线束 Cable harness Y 1

26 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 1

27 4130000912 蓄电池继电器024-1H2T-80A Relay Y 1

28 29430001761 变速操纵过渡线束 Wiring harness Y 1

29 4130000969 屏蔽胶带WINGTAI 50mm*15m Screening device Y 1

30 4130001043 组合开关86303 Light switch Y 1

31 29370022871 过渡支架 Bracket Y 1

32 4014000532 螺钉GB70.1-M5*25flZnyc-10.9-480 Screw Y 2

33 11217633 启动开关 Starter switch Y 1

34 29370019451 组合仪表盘PCAN-VCE-T4F Display panel Y 1

35 29330000201 橡胶盖 Rubber plug Y 1

36 4130000498 侧边单框架JK931-01CKJ Switch panel Y 6

37 4130002356 驻车制动开关JK931-01ZCZD Switch Y 1

38 4130002283 再生/抑制再生开关JK931-01ZS/YZ Rocker switch Y 1

39 4130002284 主电源开关JK931-01ZDY Rocker switch Y 1

40 29330000201 橡胶盖 Rubber plug Y 4

41 4130002056 正反转开关JK931-01ZFZ Switch Y 1

42 4130000497 中间单框架JK931-01ZKJ Switch panel Y 10

43 4130000505 安全锁定开关JK931-01AQ Rocker switch Y 1

44 4130000593 警顶灯开关JK931-01JDD Rocker switch Y 1

45 4130001836 后刮雨器开关JK931-01HGYQ Rocker switch Y 1

46 4130001835 前后喷水开关JK931-01PS Rocker switch Y 1

47 4130000493 刮雨器开关JK931-01GYQ Rocker switch N 1

48 4130000491 后照灯开关JK931-01HZD Rocker switch N 1

49 4130000490 前照灯开关JK931-01QZD Rocker switch Y 1

50 4130002033 视频电源转接线AE-CB112 Wire Y 1

51 4130000492 警示灯开关JK931-01JSD Rocker switch Y 1

52 11219882 簧片螺母 Nut Y 1
