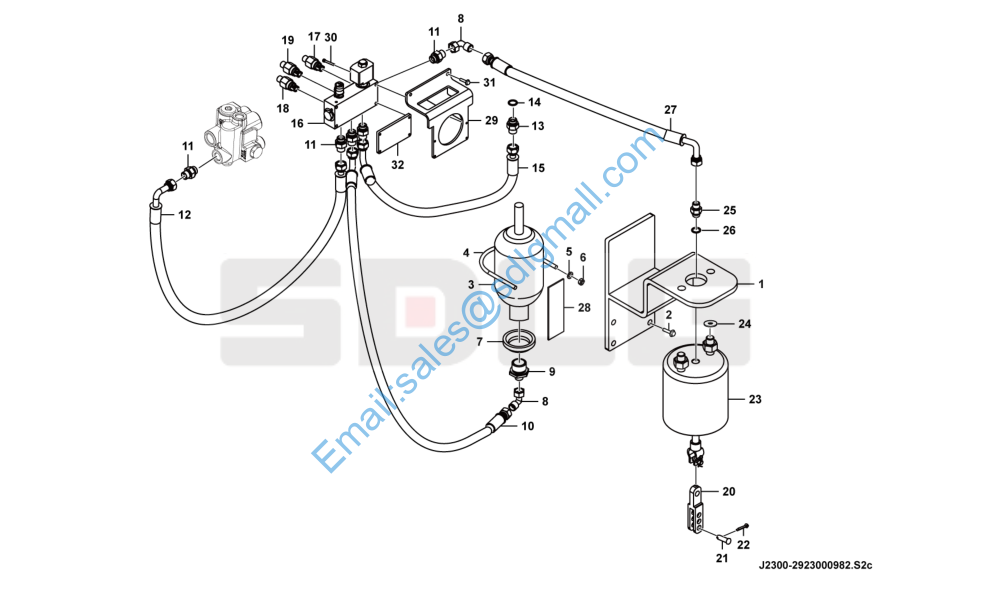

L938F 驻车制动总成 Parking brake assembly J2300-2923000982

1 29230009051 制动制动油缸支架 Bracket N 1

2 4011001375 螺栓GB16674.1-M12*30flZnyc-8.8-480 Bolt Y 4

3 4120002705 蓄能器PED1-1.0L-31.5 Accumulator Y 1

4 29120017101 U形螺栓 U-bolt Y 1

5 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 2

6 4013000384 螺母GB889.1-M8flZnyc-8-480 Nut Y 2

7 29120017111 缓冲套 Rubber sleeve Y 1

8 4190000141 接头EW12LOMDA3C Nipple Y 2

9 4120002703 接头GE12LR3/4EDOMDA3C Nipple Y 1

10 4041001997 软管LGB129-405067 Hose assembly Y 1

11 4190000149 接头GE12L3/4UNFOMDA3C Nipple Y 5

12 4041001831 软管LGB128-405060 Hose Y 1

13 4041000766 直接头LGB120-01818 Nipple Y 1

14 4041000768 O形圈LGB168-11524 O-ring Y 1

15 4041000691 软管LGB125-005110 Hose assembly Y 1

16 4120004342 制动阀快 Brake valve Y 1

17 4120004312 停车制动低压报警开关 Pressure switch Y 1

18 4120008122 紧急制动开关PS61-FS70BARF Pressure switch Y 1

19 4120008121 行车制动低压报警开关PS61-FS105BARF Pressure switch Y 1

20 29230009081 连接叉 Yoke Y 1

21 4016000352 销GB882-B10*30flZnyc-35–480 Pin Y 1

22 4016000351 销GB91-3.2*22flZnyc-Q235B-480 Split pin Y 1

23 4120002712 液压驻车制动缸 Cylinder Y 1

24 4015000439 垫圈GB96.1-16flZnyc-300HV-480 Washer Y 2

25 4041000824 直接头LGB155-01618 Nipple Y 1

26 4030000511 O形圈GB3452.1-17.5*2.65G O-ring Y 1

27 4041001996 软管LGB128-005026 Hose assembly Y 1

28 29230009811 橡胶垫 Rubber mat Y 1

29 29230009181 制动阀块固定弯板 Plate Y 1

30 4014000531 螺钉GB70.1-M5*45flZnyc-8.8-480 Screw Y 4

31 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 2
32 29230010981 固定板 Plate Y 1
