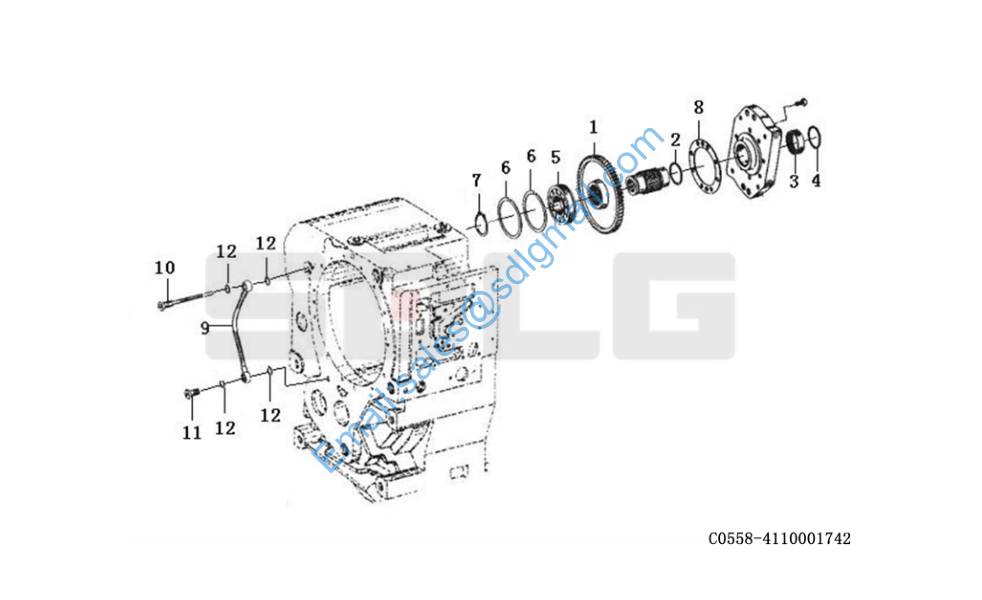

L938F 输入装置 4644 155 031 Input shaft C0558-4110001742

1 7200001682 主动齿轮(Z=74)4644311118 Gear Y 1

2 4110000367024 轴用弹性挡圈630513068 Retaining ring Y 1

3 4110000367135 滚针轴承HK4516 45*52*16 0635 303 104 Bearing Y 1

4 4110000367025 孔用弹性挡圈630513016 Retaining ring Y 1

5 4110000367018 球轴承 6209 N/C3 0750 116 259 Bearing Y 1

6 4110000076365 轴用弹性挡圈 0630 503 011 HSP85 Retaining ring Y 2

7 4110000076211 轴用挡圈 0630 501 033 45*1.75 DIN471 Retaining ring Y 1

8 4110000367133 纸垫 4644 311 209 Gasket N 1

9 7200001687 软管0750147048 Tube Y 1

10 4110000367130 油管组件4642 211 001 Pipe Y 1

11 4110001742021 空心螺栓 0637 100 521 Hollow screw Y 1

12 7200001690 密封圈(A14*20)0634801151 Sealing ring Y 4
