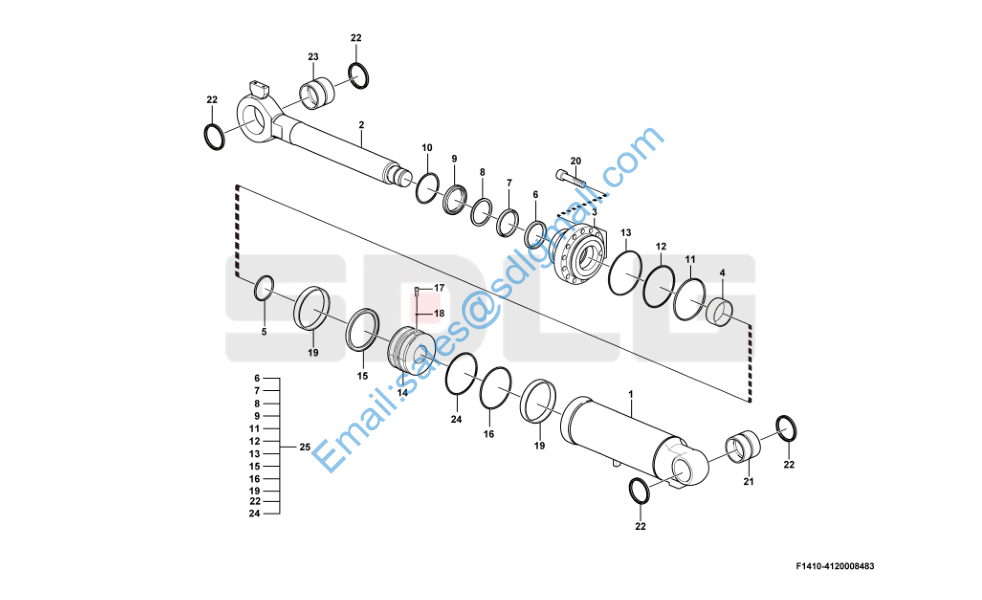

L938F 转斗油缸(3713CH) Tilt cylinder F1410-4120008483

1 4120008483001 缸筒总成24A138980 Cylinder tube Y 1

2 4120008483002 活塞杆总成24A116220 Piston rod Y 1

3 4120008483003 缸盖24C101050 Cover Y 1

4 4120008483004 衬套24S280401 Bushing Y 1

5 4120007051007 钢丝挡圈-孔用24C090200 Retaining ring Y 1

6 4120000868034 密封件-缓冲24H008004 Sealing ring N 1

7 4120000868035 密封件-活塞杆24F208003 Sealing ring N 1

8 4120008483005 挡圈-U形圈24E00800C Retaining ring N 1

9 4120000868037 密封件-防尘24D208002 Sealing ring N 1

10 4120005980008 钢丝挡圈-孔用24C090220 Retaining ring Y 1

11 4120008483006 O形圈24K01300A O-ring N 1

12 4120008483007 挡圈-O形圈24M01400C O-ring N 1

13 4120008483008 O形圈24K314001 O-ring N 1

14 4120008483009 活塞24A181080 Piston Y 1

15 4120000868042 密封件-活塞24P214002 Sealing ring N 1

16 4120006574001 O形圈24K10800A O-ring N 1

17 4120005685008 螺钉-内六角凹端紧定24T908161 M8*16L Screw Y 1

18 4090000168 钢球GB308-5-GCr6 Ball Y 1

19 4120008483011 支承环24G214041 Sealing ring N 2

20 4120006000010 螺钉-内六角圆柱头24T514555 M14*55L Screw Y 12

21 4120005071004 轴套 24C116300 Bushing Y 1

22 4120007051016 销边防尘24R306040 Sealing ring N 4

23 4120007777007 轴套 24C116310 Bushing Y 1

24 4120008483010 挡圈-O形圈24M10850C O-ring N 1

25 4120008483012 密封件维修包24A104640S Sealing kit Y 1
