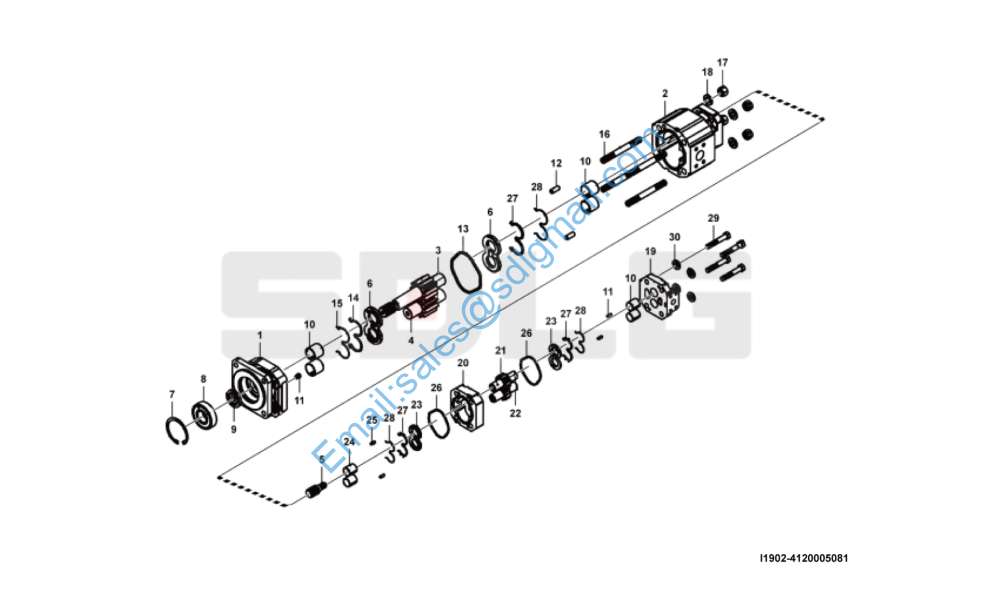

L938F 转向泵总成(120104) Steering pump assembly I1902-4120005081

1 4120005082201 前盖163A002T Cover N 1
2 4120005081201 HPT3/124E类泵体163E375T Pump body N 1
3 4120005081202 一级主齿163F390T Drive shaft N 1
4 4120005081203 一级从齿163G027T Shaft N 1
5 4120005081204 接轴163H004T Shaft N 1
6 4120005082209 侧板163J002T Side board N 2
7 4120005082210 孔用弹性挡圈565C-00016 Retaining ring N 1
8 4120005082211 外置轴承W58-48 Beaing N 1
9 4120005082212 油封W62-26-10 Sealing ring N 1
10 4120005082213 滑动轴承002B005T Plain bearing N 4
11 4120005082214 堵油螺钉S-0280 Screw N 1
12 4120005082215 圆柱销008A0006 Pin N 2
13 4120005082216 O型密封圈001E0006 O-ring N 1
14 4120005082217 E型密封圈006E003T Sealing ring N 2
15 4120005082218 E型挡圈007E002T Retaining ring N 2
16 4120005081205 双头螺柱002A0016 Stud N 4
17 4120005082220 螺母004A0004 Nut N 4
18 4120005082221 垫圈W033-2 Washer N 4
19 4120005081206 后盖592C-01122-2035 Cover N 1
20 4120005081207 泵体577-01109-07 Pump body N 1
21 4120005081208 二级主齿996C-L0039-07DR Drive shaft N 1
22 4120005081209 二级从齿996-01103-071D Shaft N 1
23 4120005081210 侧板947-01105 Side board N 2
24 4120005081211 滑动轴承921-01108 Plain bearing N 4
25 4120005081212 圆柱销280-1971-071 Pin N 4
26 4120005081213 方型密封圈TA-2995-152 Sealing ring N 2
27 4120005081214 Ｅ型密封圈947-01107 Sealing ring N 2
28 4120005081215 Ｅ型挡圈947-01106 Retaining ring N 2
29 4120005081216 螺栓W1-11 Screw N 4
30 4120005081217 垫圈W033-1 Washer N 4

31 4120005081218 密封件包 Sealing ring kit Y 1
