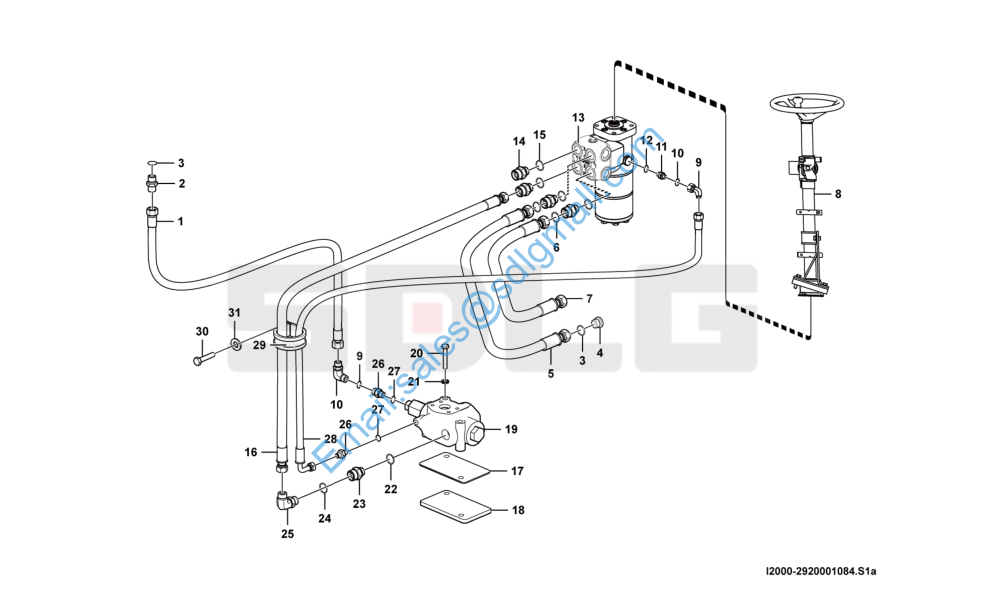

L938F 转向器总成 Steering gear system I2000-2920001084

1 4041001289 软管LGB124-003120 Hose assembly Y 1

2 4041000133 直接头LGB120-01414 Nipple Y 1

3 4041000767 O形圈LGB168-11124 O-ring Y 2

4 4041000774 螺塞LGB135-01422 Plug Y 1

5 29200010991 转向器L口出油钢管 Pipe Y 1

6 4030000289 O形圈GB3452.1-16.0*1.80G O-ring Y 2

7 29200011011 转向器R口出油钢管 Pipe Y 1

8 29200010591 转向柱总成 Steering column N 1

9 4041001047 组合接头LGB143-01406 Nipple Y 2

10 4030000530 O形圈GB3452.1-6.00*1.80G O-ring Y 2

11 4041000131 直接头LGB120-01412 Nipple Y 1

12 4041000784 O形圈LGB168-10924 O-ring Y 1

13 4120003947 转向器BZZ6-630A Control valve Y 1

14 4041000564 直接头LGB120-02620 Nipple Y 4

15 4041000783 O形圈LGB168-11724 O-ring Y 4

16 4120005208 软管LGB127-410115 Hose assembly Y 1

17 29200009871 橡胶板 Rubber plate Y 1

18 29200009981 板 Plate Y 1

19 4120005053 优先阀VLH-240S-14 Priority valve Y 1

20 4011001331 螺栓GB5782-M12*110flZnyc-8.8-480 Screw Y 2

21 29200010471 平垫圈-12 Washer Y 2

22 4041000088 直接头LGB155-23326 Nipple Y 1

23 4030000276 O形圈GB3452.1-32.5*2.65G O-ring Y 1

24 4041001006 组合接头LGB143-02616 Nipple Y 1

25 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 1

26 4041000084 直接头LGB155-01214 Nipple Y 2

27 4030000285 O形圈GB3452.1-12.5*2.65G O-ring Y 2

28 4041001748 软管LGB128-403125 Hose assembly Y 1

29 26370002201 管夹 Clamp Y 1

30 4011001314 螺栓GB5783-M8*12flZnyc-8.8-480 Screw Y 1

31 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 1
