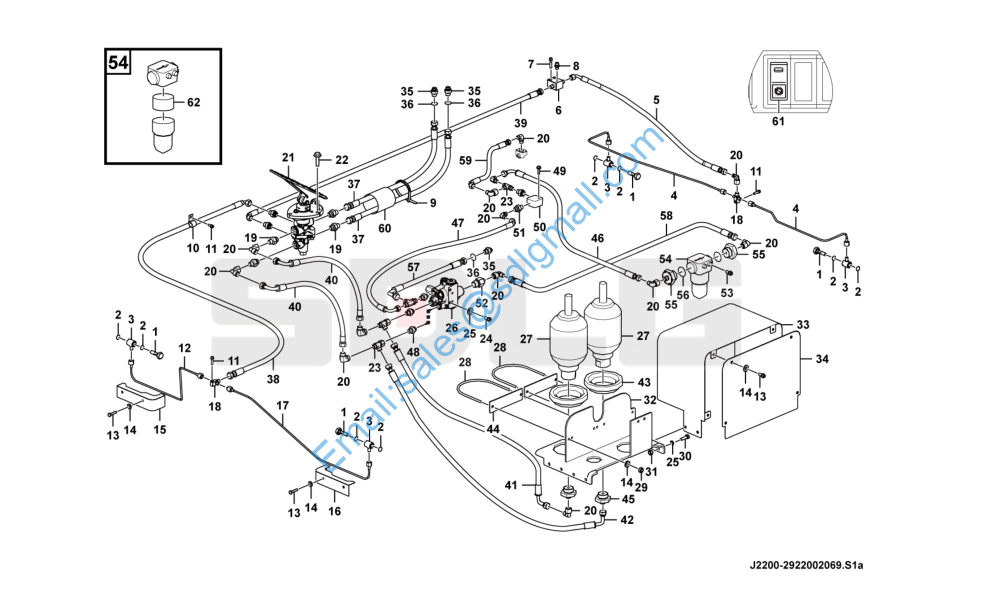

L938F 行车制动总成 Travel brake assembly J2200-2922002069

1 29220001251 制动器管接头 Nipple Y 4

2 4030000552 O形圈 O-ring Y 8

3 29220001261 制动器接头块 Block Y 4

4 29220020671 后桥油管 Brake pipe Y 2

5 4041001835 软管LGB129-404090 Hose assembly Y 1

6 29220009221 接头块 Block Y 1

7 4011001305 螺栓GB16674.1-M8*45flZnyc-8.8-480 Screw Y 2

8 4120004340 制动尾灯压力开关 Switch Y 1

9 4190000020 扎丝LG13-ZS4*250 Cable tie Y 4

10 26030001911 管夹D32 Hose clamp Y 1

11 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 3

12 29220020651 前桥右油管 Brake pipe Y 1

13 4011001314 螺栓GB5783-M8*12flZnyc-8.8-480 Screw Y 8

14 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 12

15 29220013761 前桥右护板 Protecting plate Y 1

16 29220013751 前桥左护板 Protecting plate Y 1

17 29220020631 前桥左油管 Brake pipe Y 1

18 29220010161 三通接头 Three-way nipple Y 2

19 4190000147 接头GE12L9/16UNFOMDA3C Nipple Y 6

20 4190000141 接头EW12LOMDA3C Nipple Y 13

21 4120004421 串联踏板阀06-466-220 Brake valve N 1

22 4011001301 螺栓GB16674.1-M8*30flZnyc-8.8-480 Screw Y 3

23 4190000143 三通接头EL12LOMDA3C Three-way nipple Y 4

24 29220018821 螺栓3/8-16UNC Screw Y 2

25 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 22

26 4120002658 双路充液阀06-463-230 Check valve N 1

27 4120004659 蓄能器NXQ-A-1.6/31.5-L-Y Accumulator Y 2

28 29220010301 U形螺栓 U-bolt Y 2

29 4013000384 螺母GB889.1-M8flZnyc-8-480 Nut Y 4

30 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 8

31 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 8

32 29220014001 蓄能器支架 Bracket Y 1

33 29220013251 护罩弯板总成 Plate Y 1

34 29220013271 护罩直板 Plate Y 1

35 4041000766 直接头LGB120-01818 Nipple Y 3

36 4041000768 O形圈LGB168-11524 O-ring Y 3

37 4041001992 软管LGB124-005140 Hose assembly Y 2

38 29220013951 至前桥制动油管 Hose assembly Y 1

39 29220013961 至后桥油管 Hose assembly Y 1

40 4041000773 软管LGB128-005120 Hose assembly Y 2

41 4041001837 软管LGB128-405039 Hose assembly Y 1

42 4041001836 软管LGB128-405042 Hose assembly Y 1

43 29220010311 缓冲套 Rubber sleeve Y 2

44 29230008271 橡胶垫 Rubber mat Y 2

45 29220010271 直接头 Nipple Y 2

46 4041001986 软管LGB128-005043 Hose assembly Y 1

47 4041001765 软管LGB128-005040 Hose assembly Y 1

48 4190000149 接头GE12L3/4UNFOMDA3C Nipple Y 3

49 4011001284 螺栓GB16674.1-M6*40flZnyc-8.8-480 Screw Y 2

50 4120002678 溢流阀块1010376－160 Overflow valve Y 1

51 4120001901 接头GE12LM18*1.5EDOMDA3C Nipple Y 2

52 29220017621 直接头1-1/16-12UN-M18 Nipple Y 1

53 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 2

54 4120004417 压力油过滤器PLF-H110*10 Hydraulic fluid filter Y 1

55 29220012581 变径接头 Nipple Y 2

56 4030000894 O形圈GB3452.1-43.7*2.65G O-ring Y 2

57 4041000650 软管LGB124-005113 Hose assembly Y 1

58 4041002023 软管LGB129-005043 Hose assembly Y 1

59 4041001367 软管LGB128-405090 Hose assembly Y 1

60 29010035891 自扎帆布套 Tarpaulin cover Y 2

61 4130000504 动力切断开关JK931-01DL Rocker switch Y 1
62 4120004417001 压力油过滤器滤芯LH0110D010BN/HC Filter insert Y 1
