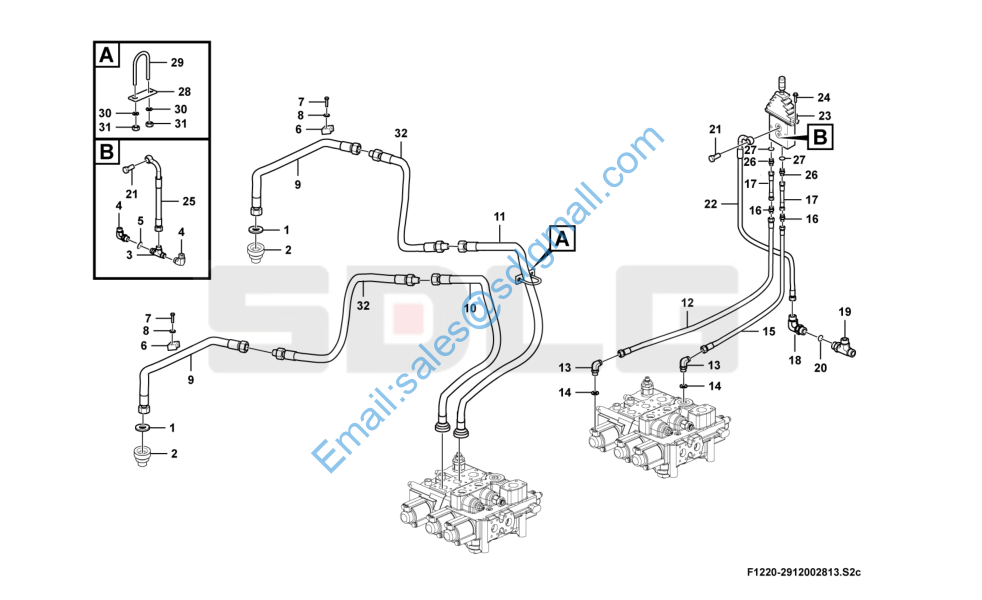

L938F 第三联接口 The 3rd function control unit F1220-2912002813

1 29120024891 垫圈 Washer Y 2

2 29120036731 丝堵 Plug Y 2

3 4120002169 三通接头ET10LOMDCF Three-way nipple Y 1

4 4041001023 组合接头LGB143-01608 Nipple Y 2

5 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 1

6 29120010811 压板 Plate Y 4

7 4011001396 螺栓GB5783-M8*35flZnyc-8.8-480 Screw Y 8

8 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 8

9 29120034551 第三联动臂钢管 Pipe Y 2

10 29120022281 辅助联右钢管 Pipe Y 1

11 29120022301 辅助联左钢管 Pipe Y 1

12 4041001455 软管LGB125-003220 Hose assembly Y 1

13 29120015401 接头 Nipple Y 2

14 29120014931 垫圈 Washer Y 6

15 4041001910 软管LGB124-003180 Hose assembly Y 1

16 29120017721 直接头 Nipple Y 2

17 4041001753 软管LGB126-003070 Hose assembly Y 2

18 4041001063 组合接头LGB143-01810 Nipple Y 1

19 29120016521 三通管接头 Three-way nipple Y 1

20 4041000768 O形圈LGB168-11524 O-ring Y 1

21 4011001325 螺栓JB999-M14*1.5*32flZnyc-480-35 Bolt Y 2

22 29120024991 小先导回油管 Hose assembly Y 1

23 4120001966 先导阀总成2TH6L-01 Control lever Y 1

24 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 2

25 29120026311 小先导进油管 Hose assembly Y 1

26 4041000133 直接头LGB120-01414 Nipple Y 2

27 4041000767 O形圈LGB168-11124 O-ring Y 2

28 4041001001 底板LGB160-2535 Plate Y 4

29 29120022061 U型螺栓 U-bolt Y 4

30 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 8

31 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 16
32 4041002253 软管LGB127-412128 Hose assembly Y 2
