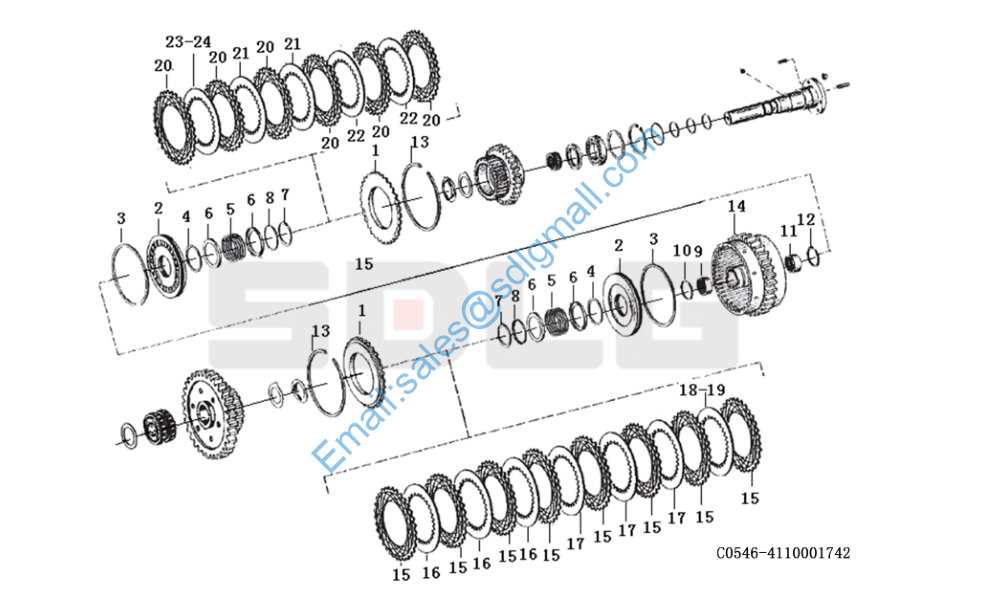

L938F 离合器 4644 151 238 Clutch C0546-4110001742

1 4110000367104 承压板4644 308 071 Pressure plate Y 2
2 4110000367043 活塞4644351070 Cylinder piston Y 2
3 4110000367105 异形密封环0750 112 139 Sealing ring Y 2
4 4110000076353 异形密封环 0750 112 140 Sealing ring Y 2
5 4110000076251 压力弹簧0732041183 Tension spring Y 2
6 4110000076189 导向环4642308083 Retaining ring Y 4
7 4110000076298 挡圈 0630 531 346 AV55 Retaining ring Y 2
8 4110000076302 导向环 4642 308 084 Retaining ring Y 2
9 4110000367106 滚针轴承 F3526 354226 0635 303 203 Needle bearing Y 1
10 4110000076294 弹性挡圈 0730 513 610 Retaining ring Y 1
11 4110000367107 滚针轴承 F4026 404726 0635 303 205 Needle bearing Y 1
12 4110000076295 弹性挡圈 0730 513 611 Retaining ring Y 1
13 4110001742011 调整垫片 0730 513 181,433-437,457-459 Shim Y 2
14 4110001742012 齿轮 4644 251 049 Gear Y 1
15 4110000367112 外摩擦片 0501 309 330 Friction disc Y 8
16 4110000367113 内摩擦片4644 308 329 Friction disc Y 3
17 4110000367114 内摩擦片4644 308 330 Friction disc Y 3
18 4110000367113 内摩擦片4644 308 329 Friction disc Y 1
19 4110000367114 内摩擦片4644 308 330 Friction disc Y 1
20 4110000367112 外摩擦片 0501 309 330 Friction disc Y 6
21 4110000367113 内摩擦片4644 308 329 Friction disc Y 2
22 4110000367114 内摩擦片4644 308 330 Friction disc Y 2
23 4110000367113 内摩擦片4644 308 329 Friction disc Y 1
24 4110000367114 内摩擦片4644 308 330 Friction disc Y 1
