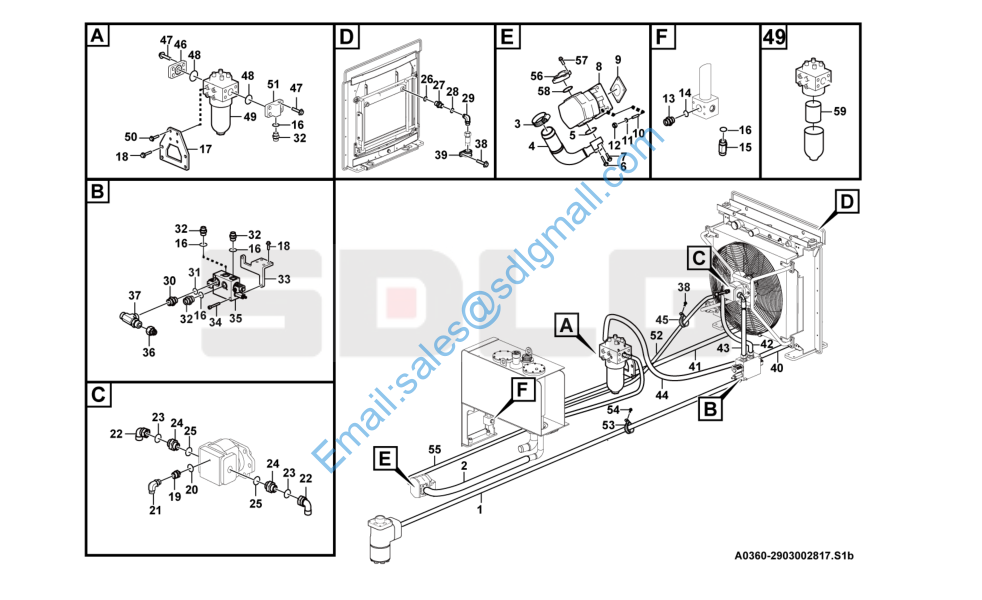

L938F 液压马达管路总成 Fan motor hydraulic system A0360-2903002817

1 4120005467 软管LGB166-410295 Hose Y 1

2 29030028181 吸油胶管 Hose assembly Y 1

3 4017000018 喉箍JB8870-d70 Clamp Y 4

4 29110011151 吸油钢管 Pipe Y 1

5 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 1

6 4011001298 螺栓GB16674.1-M10*55flZnyc-8.8-480 Screw Y 2

7 4011001288 螺栓GB16674.1-M10*50flZnyc-8.8-480 Screw Y 2

8 4120005967 齿轮泵HPT3-40 Gear pump Y 1

9 29110007541 泵用密封垫 Gasket Y 1

10 4012000082 螺柱GB898-M12*35flZnyc-8.8-480 Stud Y 4

11 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 4

12 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 4

13 4041000143 直接头LGB120-02222 Nipple Y 1

14 4041001265 O型圈LGB168-21924 O-ring Y 1

15 4041001272 直接头LGB120-03628 Nipple Y 1

16 4041000779 O形圈LGB168-12331 O-ring Y 5

17 29030021611 固定板 Bracket Y 1

18 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480 Screw Y 8

19 29030014251 直接头UNF7 /16-M22 Nipple Y 1

20 4120003299 O形圈8.92*1.83 O-ring Y 1

21 4190000139 接头EW15LOMDA3C Nipple Y 2

22 4041001006 组合接头LGB143-02616 Nipple Y 2

23 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 2

24 29120012681 直通接头 Nipple Y 2

25 4030000090 O形圈GB3452.1-28.0*2.65G O-ring Y 2

26 4030000211 O形圈GB3452.1-30.0*2.65G O-ring Y 2

27 4041001486 直接头LGB155-03036 Nipple Y 2

28 4030000504 O形圈GB3452.1-25.8*1.80G O-ring Y 2

29 4041001211 组合接头LGB143-03625 Nipple Y 2

30 4041000577 直接头LGB120-03633 Nipple Y 1

31 4041001458 O形圈LGB168-22931 O-ring Y 1

32 4041000796 直接头LGB120-02628 Nipple Y 4

33 29030022751 固定板 Bracket Y 1

34 4014000526 螺钉GB70.1-M10*70flZnyc-8.8-480 Screw Y 2

35 4120005302 温控风冷控制阀组 Valve Y 1

36 29030022721 变径接头RED2818LCF Nipple Y 1

37 29030022971 三通接头ET28LOMDCF Three-way nipple Y 1

38 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 3

39 29030010811 管夹 Clamp Y 2

40 4041002400 软管LGB166-014122 Hose assembly Y 1

41 4041002353 软管LGB164-014295 Hose assembly Y 1

42 4041002395 软管LGB129-010065 Hose assembly Y 1

43 4041002396 软管LGB129-010079 Hose assembly Y 1

44 4041001220 软管LGB128-010085 Hose assembly Y 1

45 26370001941 管夹 Clamp N 1

46 29030016121 法兰接头 Nipple Y 1

47 4011001274 螺栓GB16674.1-M16*40flZnyc-8.8-480 Screw Y 8

48 4030000130 O形圈GB3452.1-47.5*3.55G O-ring Y 2

49 4120004418 压力油过滤器PLF-H240*10F Oil filter Y 1

50 4011001432 螺栓GB16674-M10*20flZnyc-8.8-480 Screw N 4

51 29030022741 过渡块 Block Y 1

52 4041002610 软管LGB164-406190 Hose assembly Y 1

53 4041002414 管夹LGB169-A30*10 Clamp Y 3

54 4011001313 螺栓GB16674.1-M8*12flZnyc-8.8-480 Screw Y 2

55 29030032671 软管Φ44.5-M26 Hose assembly Y 1

56 4041000026 分体法兰LGB117-310491 Flange half Y 1

57 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 4

58 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 1

59 4120004418001 压力油过滤器滤芯LH0240D010BN/HC Filter insert Y 1
