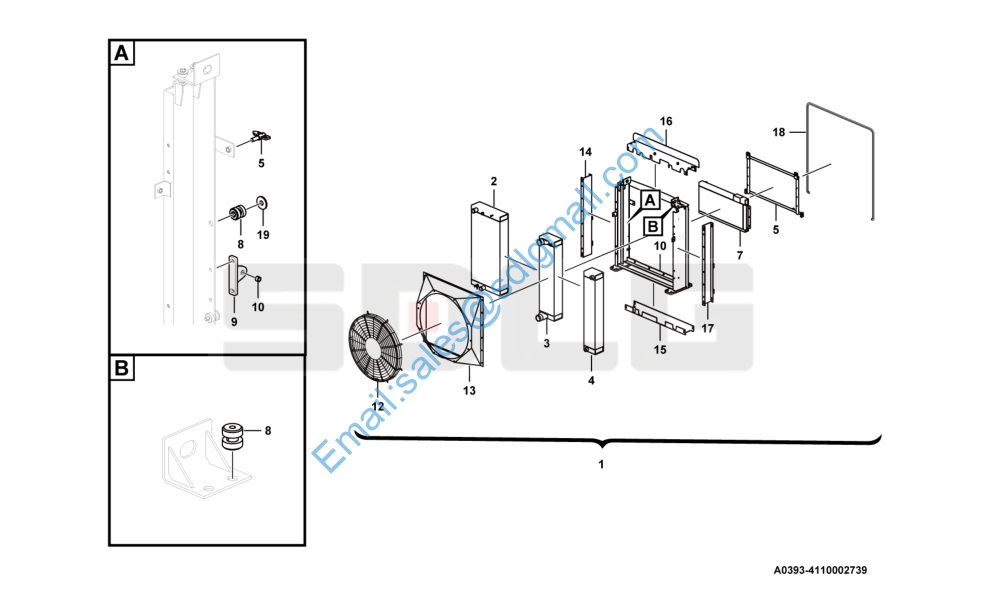

L938F 散热器总成 Cooling system A0393-4110002739

1 4110002739 散热器总成L948F-Ⅴ Radiator Y 1
2 4110002739001 水散热器Z06048.37.00 Radiator Y 1
3 4110002739002 中冷器Z06048.35.00 Charge air cooler Y 1
4 4110002739003 传动油散热器Z06048.38.00 Oil cooler Y 1
5 4110002466002 锁扣SK.001 Lock N 2
6 4110002739004 旋转支架Z06048.34.800 Radiator bracket N 1
7 4110002739005 液压油散热器Z06048.36.00 Hydraulic oil cooler Y 1
8 4110002739006 减震器CB2201-00 Absorber N 8
9 4110002370009 连接支架Z06030.34.310 Radiator bracket Y 2
10 4110002739007 隔套 Z06030.34.004 Sleeve N 2
11 4110002739008 框架分总成Z06048.34.00 Radiator anchorage N 1
12 4110002739009 护网分总成Z06048.34.600 Fan guard Y 1
13 4110002739010 导风罩分总成Z06048.34.500 Fan shroud Y 1
14 4110002739011 左侧板分总成Z06048.34.300 Radiator bracket N 1
15 4110002739012 底板分总成Z06048.34.200 Bracket N 1
16 4110002739013 上盖板分总成Z06048.34.100 Cover plate N 1
17 4110002739014 右侧板分总成Z06048.34.400 Radiator bracket N 1
18 4110002739015 垫圈2Z06048.003 Adjusting washer N 4
