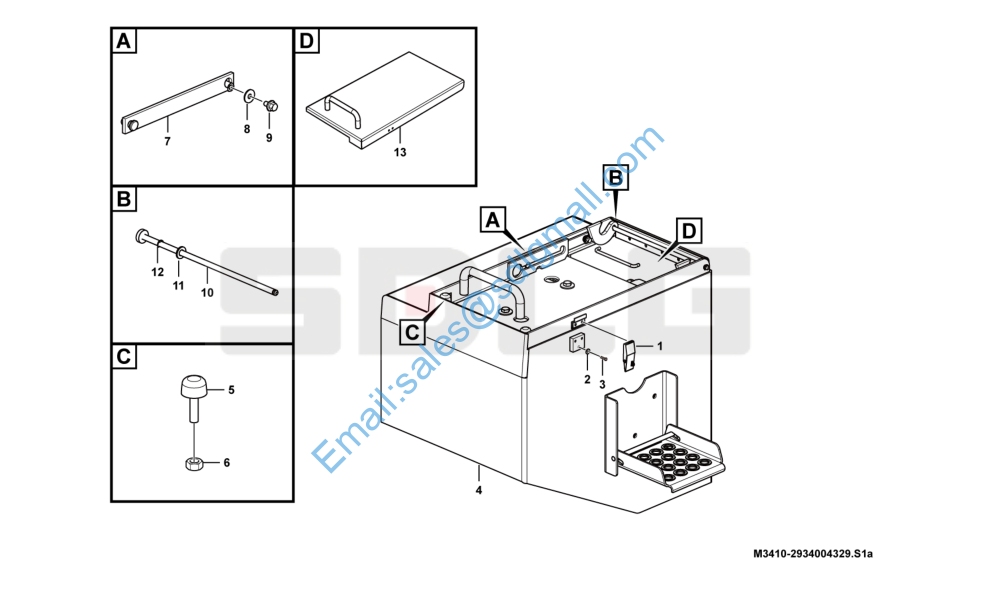

L938F 右电瓶箱总成 Battery box M3410-2934004329

1 4190000025 扣锁NBxs1013 Lock Y 1

2 4015000110 垫圈GB97.1-5EpZn-300HV Washer Y 5

3 4014000023 螺钉GB818-M5*10EpZn-4.8 Screw Y 5

4 29340043311 底框总成 Frame N 1

5 26330006531 缓冲器 Rubber block Y 2

6 4013000033 螺母GB6170-M8EpZn-8 Nut Y 2

7 29340009091 拉杆 Pull rod Y 1

8 4015000198 垫圈GB96.1-6EpZn-300HV Washer Y 1

9 4011000152 螺栓GB16674-M6*10EpZn-8.8 Bolt Y 1

10 29340043341 销轴 Pin Y 1

11 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 2

12 4015000355 挡圈GB896-6-65Mn Retaining ring Y 1

13 29340043331 右箱盖 Cover N 1
