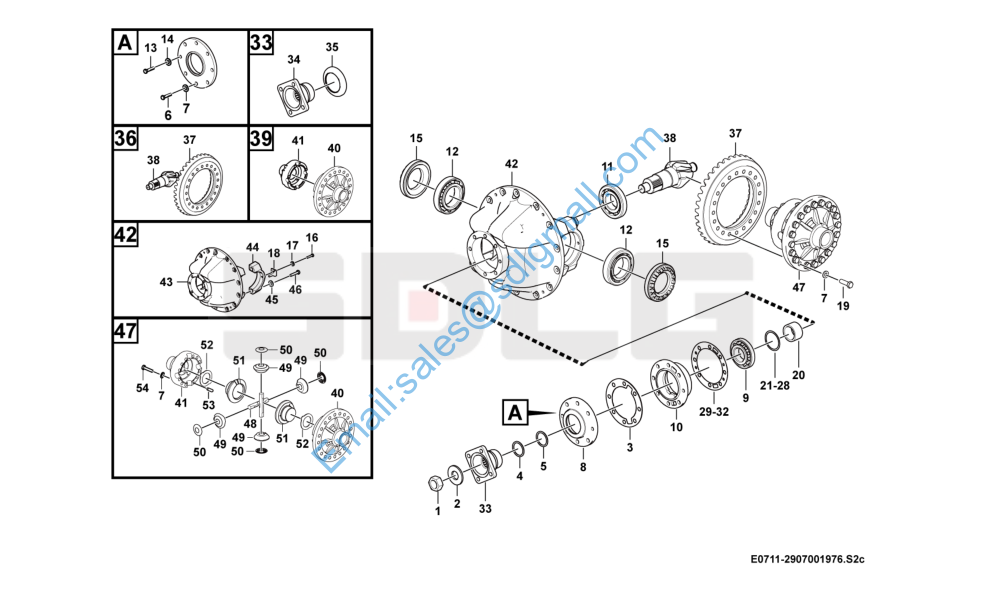

L938F 主传动总成 Final drive E0711-2907001976

1 4013000066 螺母GB889.2-M33*1.5-8 Lock nut Y 1

2 3050900007 垫圈 Washer Y 1

3 3050900172 垫片 Shim Y 1

4 4030000048 骨架油封HG4-692-SG70*95*10 Sealing ring Y 1

5 4030000768 密封圈GB13871.1-FB070095-F Sealing ring Y 1

6 4011001318 螺栓GB5782-M14*55flZnyc-8.8-480 Screw Y 7

7 29090007961 垫圈 Washer Y 31

8 29070019901 密封盖 Sealing cover Y 1

9 4021000028 滚动轴承GB297-31310 Roller bearing Y 1

10 29070019911 轴承套 Bearing bushing Y 1

11 4021000139 滚动轴承GB297-31312 Roller bearing Y 1

12 4021000105 滚动轴承GB297-32214 Ball bearing Y 2

13 4011001281 螺栓GB5782-M12*55flZnyc-8.8-480 Screw Y 1

14 29070015981 垫圈 Washer Y 1

15 29070019941 调整螺母 Adjusting nut Y 2

16 4011000597 螺栓GB5786-M10*1*20EpZn-8.8 Bolt Y 2

17 29050015481 垫圈10 Washer Y 2

18 3050900024 锁紧片 Lock washer Y 2

19 4011000345 螺栓GB5786-M14*1.5*30EpZn-10.9 Screw Y 16

20 29070019961 隔套 Sleeve Y 1

21 29070019971 调整垫片 Spacer sleeve Y 1

22 29070019981 调整垫片 Spacer sleeve Y 1

23 29070019991 调整垫片 Spacer sleeve Y 1

24 29070020001 调整垫片 Spacer sleeve Y 1

25 29070020011 调整垫片 Spacer sleeve Y 1

26 29070020021 调整垫片 Spacer sleeve Y 1

27 29070020031 调整垫片 Spacer sleeve Y 1

28 29070020041 调整垫片 Spacer sleeve Y 1

29 3050900011 调整垫片 Shim Y 5

30 29070010611 调整垫片 Shim Y 4

31 29070010621 调整垫片 Shim Y 3
32 29070010631 调整垫片 Shim Y 1
33 29070019891 输入法兰 Flange Y 1
34 29070020052 法兰 Connection flange Y 1
35 3050900058 防尘圈 Sealing ring Y 1
36 29070019951 主从动螺旋伞齿轮 Crown wheel Y 1
37 29070020061 从动螺旋伞齿轮 Crown wheel N 1
38 29070020071 主动螺旋伞齿轮 Crown wheel N 1
39 29070020102 差速器左右壳 Differential housing Y 1
40 29070020601 差速器左壳 Differential housing N 1
41 29070020122 差速器右壳 Differential housing N 1
42 29070019922 托架总成 Center housing Y 1
43 29070020082 托架 Centre housing N 1
44 29070020091 轴承座 Bearing seat Y 2
45 29070019751 垫片18 Washer Y 4
46 4011000951 螺栓GB5785-M181.575EpZn-10.9 Screw Y 4
47 29070019932 差速器总成 Differential Y 1
48 29070020611 一字轴 Shaft Y 2
49 29070020141 锥齿轮 Differential pinion Y 4
50 29070020151 锥齿轮垫片 Thrust washer Y 4
51 29070020161 半轴齿轮 Differential side gear Y 2
52 29070020171 半轴齿轮垫片 Thrust washer Y 2
53 29070000461 固定销 Pin Y 4
54 4011000964 螺栓GB5785-M141.570EpZn-10.9 Screw Y 8
