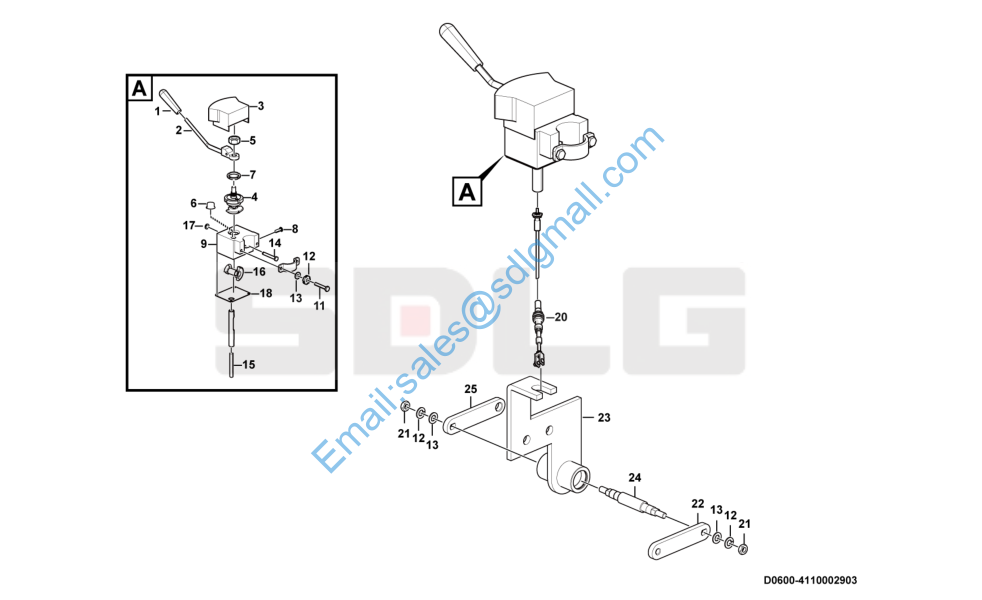

LG933L变速操纵总成(130501) Control mechanism D0600-4110002903

1 4110000172006 手球LGH9530001 Handle ball Y 1

2 4110000172007 手柄组件LGH9530002 Bracket Y 1

3 4110000172008 盒罩LGH9530003 Cover Y 1

4 4110001680004 轴组件LGH9530004 Shaft Y 1

5 4110000172026 M10螺母RM-006-01 Nut Y 1

6 4110000746003 M16尼龙帽LGH9530016 M16 nyong bonnet N 1

7 4110000172027 M36螺母LGH9530005 Nut Y 1

8 4110000746004 M5螺栓LGH9530006 Bolt Y 7

9 4110001680005 953N铝盒LGH953N0004 Cover Y 1

10 4110002868002 固定板4110001488-01 Plate Y 1

11 4110000172029 M8×1.25-30螺栓LGH9530009 Screw Y 2

12 4110002042020 弹垫Φ8 TD-002 Washer Y 2

13 4110002042019 平垫Φ8 PD-002 Washer Y 2

14 4110000172030 六方头销轴LGH9530010 Pin Y 1

15 4110000172031 齿条LGH9530012 Gear rack Y 1

16 4110001680006 齿轮套组件LGH9530011 Gear sleeve Y 1

17 4110000172032 卡簧（∮10）KH-003 Retaining ring Y 1

18 4110001680007 盒盖LGH9530013 Cover Y 1

19 4110001680008 齿条筒LGH9530014 Rack sleeve Y 1

20 4110002903001 软轴总成LGHR933L0001 Control cable Y 1

21 4120002148013 M8螺母RM-001 Nut Y 2

22 4110001119007 软轴支架连接板LGH9330012 Bracket Y 1

23 4110002434008 软轴支架焊合件LGH9330013-1 Bracket Y 1

24 4110001119008 支架轴LGH9330014 Shaft Y 1

25 4110001119009 软轴支架连接板LGH9330015 Bracket Y 1
