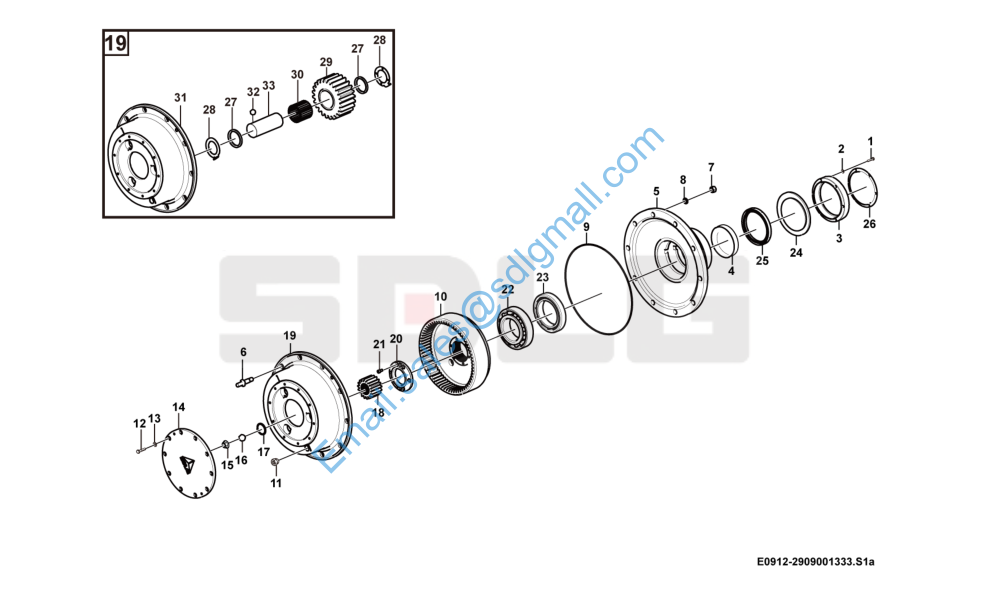

L956F 轮边减速器 Hub reduction E0912-2909001333

1 4011001321 螺栓GB5782-M8*45flZnyc-8.8-480 Screw Y 6

2 29050015471 垫圈8 Washer Y 6

3 29070001231 油封端盖 Sealing cover Y 1

4 29070001261 隔套 Spacer sleeve Y 1

5 29070001241 轮毂 Hub Y 1

6 29070021471 轮辋螺栓 Screw Y 10

7 4013000382 螺母GB6171-M20*1.5flZnyc-10-480 Nut Y 10

8 4015000030 垫圈GB93-20-65Mn Spring washer Y 10

9 4041000020 O形圈LGB308-440*3.5 O-ring Y 1

10 29070013111 内齿圈 Gear ring Y 1

11 29070021441 磁性螺塞 Plug Y 1

12 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 10

13 29050013611 垫片 Shim Y 10

14 29070007621 盖 Cover Y 1

15 29070009161 定位块 Block Y 1

16 4090000006 钢球GB308-17.462-GCr15 Ball Y 1

17 4015000022 挡圈GB894.1-52-65Mn Retaining ring Y 1

18 29070012671 太阳轮 Sun gear Y 1

19 29090010871 行星轮架总成 Planet gear kit Y 1

20 29070015581 圆螺母 Round nut Y 1

21 4014000016 螺钉GB70-M10*1*20EpZn-8.8 Screw Y 2

22 4021000037 滚动轴承GB297-32221 Roller bearing Y 1

23 4021000033 滚动轴承GB297-32024 Roller bearing Y 1

24 29070001271 垫片 Shim Y 1

25 4030000047 骨架油封HG4-692-PD150*180*16 Sealing ring Y 1

26 29070018192 防尘罩 Dust cap Y 1

27 29070012681 行星轮垫片 Shim Y 6

28 29070012701 挡环 Retaining ring Y 6

29 29070012711 行星齿轮 Planet gear Y 3

30 4090000158 滚针GB309-P6*54-GCr15 Needle roller Y 81

31 29090008771 行星轮架 Planet carrier Y 1
32 4090000008 钢球GB308-9.525-GCr15 Ball Y 3
33 29070012691 行星齿轮轴 Planet gear shaft Y 3
