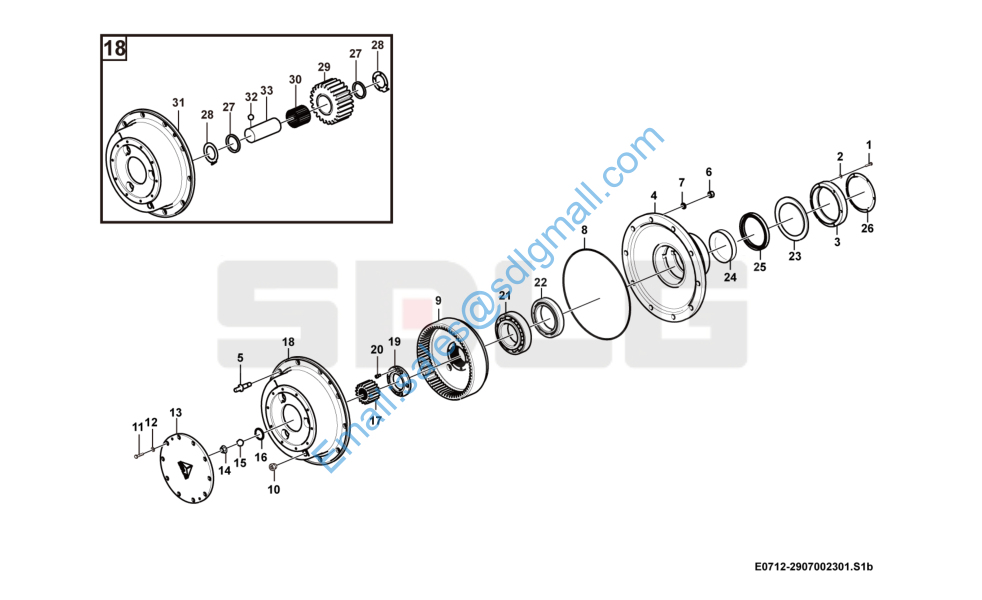

L956F 轮边减速器 Hub reduction E0712-2907002301

1 4011001321 螺栓GB5782-M8*45flZnyc-8.8-480 Screw Y 6

2 29050015471 垫圈8 Washer Y 6

3 29070015101 油封端盖 Sealing cover Y 1

4 29070010931 轮毂 Front wheel hub Y 1

5 29070021471 轮辋螺栓 Screw Y 10

6 4013000382 螺母GB6171-M20*1.5flZnyc-10-480 Nut Y 10

7 4015000030 垫圈GB93-20-65Mn Spring washer Y 10

8 4041000020 O形圈LGB308-440*3.5 O-ring Y 1

9 29070012892 齿圈支架总成 Gear ring Y 1

10 29070021441 磁性螺塞 Plug Y 1

11 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 10

12 29050013611 垫片 Shim Y 10

13 29070007621 盖 Cover Y 1

14 29070009161 定位块 Block Y 1

15 4090000006 钢球GB308-17.462-GCr15 Ball Y 1

16 4015000022 挡圈GB894.1-52-65Mn Retaining ring Y 1

17 29070012671 太阳轮 Sun gear Y 1

18 29070018771 行星轮架总成 Planet gear kit Y 1

19 29070015591 圆螺母 Round nut Y 1

20 4014000033 螺钉GB70.1-M8*16EpZn-8.8 Screw Y 2

21 4021000038 滚动轴承GB297-32224 Roller bearing Y 1

22 4021000034 滚动轴承GB297-32028 Roller bearing Y 1

23 29070000591 密封垫 Gasket Y 1

24 4030000146 油封HG4-692-SG170*200*15 Sealing ring Y 1

25 4110002791 密封圈FB17020012-DWS Sealing ring Y 1

26 29070015111 防尘罩 Dust cover Y 1

27 29070012681 行星轮垫片 Shim Y 8

28 29070012701 挡环 Retaining ring Y 8

29 29070012711 行星齿轮 Planet gear Y 4

30 4090000158 滚针GB309-P6*54-GCr15 Needle roller Y 108

31 29070012661 行星轮架 Planet carrier Y 1

32 4090000008 钢球GB308-9.525-GCr15 Ball Y 4

33 29070012691 行星齿轮轴 Planet gear shaft Y 4
