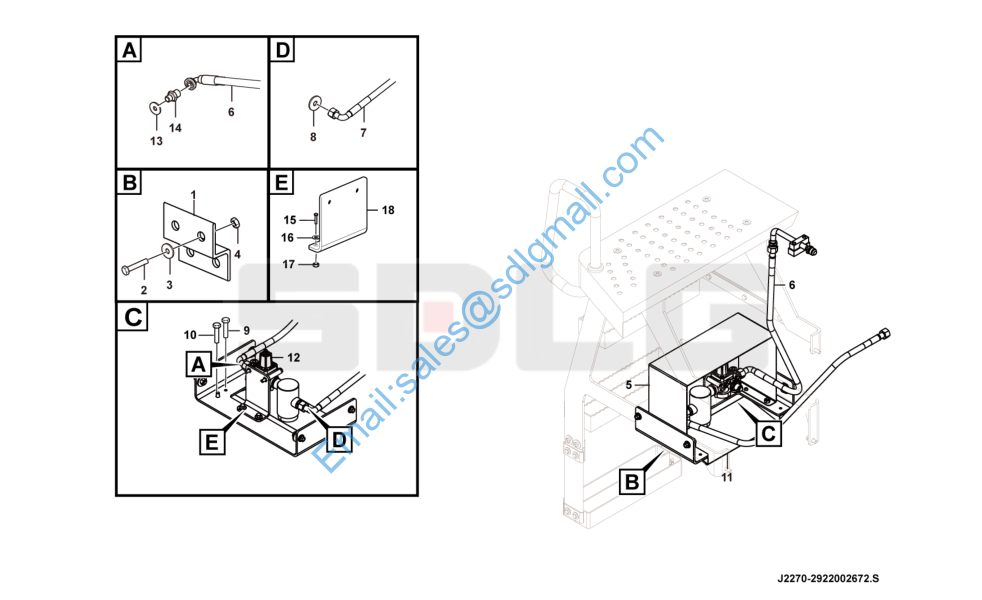

L956F 空气源管理器模块 Water separator J2270-2922002672

1 29220024381 底板 Bracket Y 1

2 4011001375 螺栓GB16674.1-M12*30flZnyc-8.8-480 Bolt Y 4

3 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 4

4 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 4

5 29220024391 护板总成 Protecting plate Y 1

6 4041002734 软管LGB173-106090 Hose assembly Y 1

7 29220026731 进气胶管 Hose assembly Y 1

8 29220000171 垫圈 Washer Y 1

9 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 4

10 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 4

11 29220018311 下盖板 Cover plate Y 1

12 4120006027 空气源管理器 Water separator Y 1

13 29220000811 垫圈 Washer Y 1

14 29220017601 直接头 Nipple Y 1

15 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480 Screw Y 2

16 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 2

17 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 2

18 29220024411 支架 Bracket Y 1
