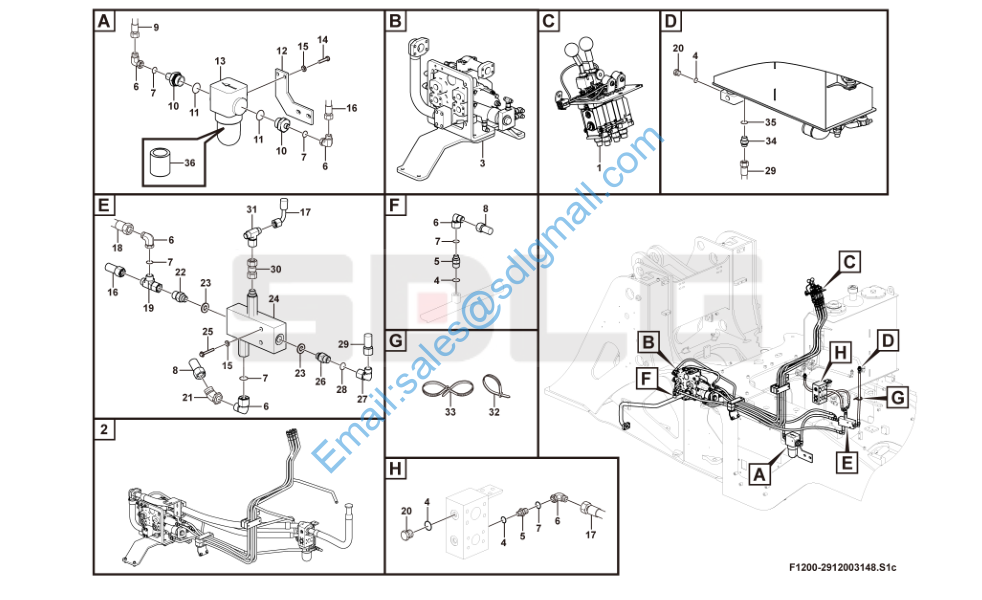

L956F 液压操纵总成 Hydraulic control F1200-2912003148

1 29120030611 先导阀总成PCL402-4MBM3H3B-C部装 Control lever N 1

2 29120031281 液压操纵主管路和先导管路 Hydraulic control N 1

3 29120029491 多路阀KM300-II-19A部装总成 Control valve assembly N 1

4 4041000767 O形圈LGB168-11124 O-ring Y 5

5 4041000604 直接头LGB120-01614 Nipple Y 2

6 4041001023 组合接头LGB143-01608 Nipple Y 6

7 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 7

8 4041000678 软管LGB127-004170 Hose Y 1

9 4041002506 软管LGB124-004188 Hose assembly Y 1

10 29120015081 接头 Nipple Y 2

11 4030000276 O形圈GB3452.1-32.5*2.65G O-ring Y 2

12 29120016021 固定板 Anchor plate Y 1

13 4120001954 滤油器PLF-C30*10 Hydraulic fluid filter Y 1

14 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 4

15 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 6

16 4041001859 软管LGB124-004045 Hose Y 1

17 4041001956 软管LGB128-004029 Hose assembly Y 1

18 4041001961 软管LGB127-004132 Hose assembly Y 1

19 4120001100 三通接头EL10LOMDA3C Three-way nipple Y 1

20 4041000774 螺塞LGB135-01422 Plug Y 3

21 4041001521 组合接头LGB143-11608 Nipple Y 1

22 29120007651 接头 Nipple Y 1

23 29120014931 垫圈 Washer Y 2

24 4120005063 压力选择阀SF8-D Valve Y 1

25 4011001262 螺栓GB5782-M10*55flZnyc-8.8-480 Bolt Y 2

26 29120007661 接头 Nipple Y 1

27 4041001063 组合接头LGB143-01810 Nipple Y 1

28 4030000490 O形圈GB3452.1-10.0*1.80G O-ring Y 1

29 4041001960 软管LGB164-405088 Hose assembly Y 1

30 4120005031 接头GZ10LCF Nipple Y 1

31 4120003065 梭阀WV-10 Shuttle valve Y 1

32 4190000056 扎丝LG13-ZS3*200 Cable tie Y 3

33 4190001832 扎丝RTGB-200ST Cable tie Y 3

34 4041000766 直接头LGB120-01818 Nipple Y 1

35 4041000768 O形圈LGB168-11524 O-ring Y 1

36 4120001954001 滤芯（先导滤清器滤芯)PLFX-30X10 Filter insert Y 1
