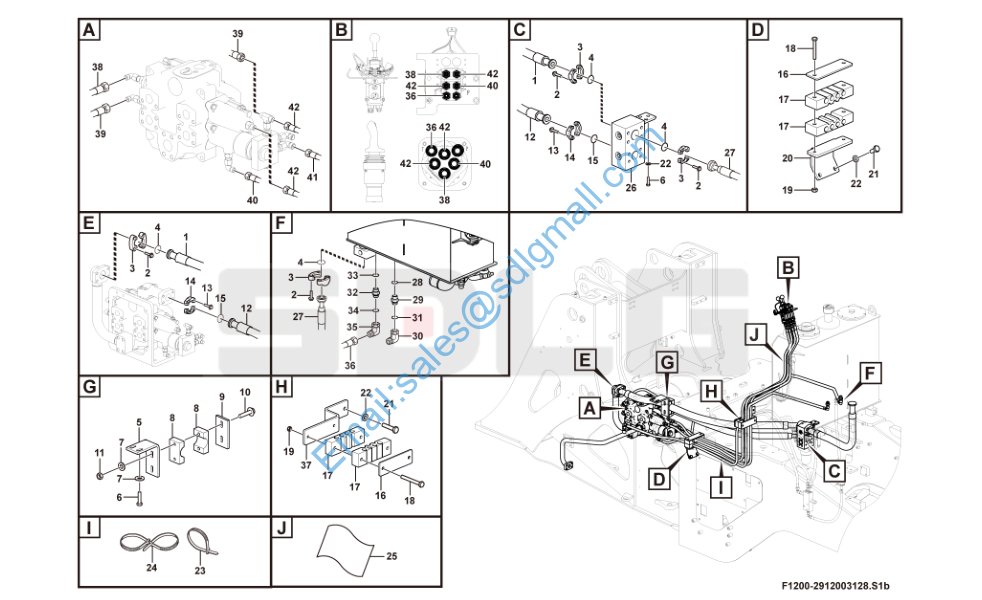

L956F 液压操纵主管路和先导管路 Hydraulic control system F1200-2912003128

1 4041001957 软管LGB161-014159 Hose assembly Y 1

2 4011001510 螺栓GB16674.1-M12*35flZnyc-8.8-480 Screw Y 16

3 4041000011 分体法兰LGB117-314650 Flange half Y 4

4 4030000130 O形圈GB3452.1-47.5*3.55G O-ring Y 4

5 29120019981 橡胶块支架 Bracket Y 1

6 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 5

7 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 4

8 4041002626 管夹LGB172-A25*28 Hose clamp Y 2

9 29120019531 压板 Plate Y 1

10 4011001568 螺栓GB5782-M10*100flZnyc-8.8-480 Screw Y 2

11 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 4

12 29120023671 多路阀进油胶管 Hose assembly Y 1

13 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 8

14 4041000056 分体法兰LGB117-312550 Flange half Y 2

15 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2

16 29120016351 固定板 Anchor plate Y 2

17 29120016741 管夹 Clamp Y 4

18 4011001303 螺栓GB16674.1-M8*90flZnyc-8.8-480 Screw Y 4

19 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 4

20 29120019621 先导管支架 Bracket Y 1

21 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 4

22 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 7

23 4190000056 扎丝LG13-ZS3*200 Cable tie Y 5

24 4190001832 扎丝RTGB-200ST Cable tie Y 5

25 26310002061 自扎帆布套 Tarpaulin cover Y 1

26 29120022901 油路块总成 Block Y 1

27 29120031271 多路阀回油胶管 Hose assembly Y 1

28 4041000767 O形圈LGB168-11124 O-ring Y 1

29 4041002773 直接头LGB120-01614*80 Nipple Y 1

30 4041001023 组合接头LGB143-01608 Nipple Y 1

31 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 1

32 4041002774 直接头LGB120-01818*80 Nipple Y 1

33 4041000768 O形圈LGB168-11524 O-ring Y 1

34 4030000490 O形圈GB3452.1-10.0*1.80G O-ring Y 1

35 4041001063 组合接头LGB143-01810 Nipple Y 1

36 4041002505 软管LGB164-005115 Hose assembly Y 1

37 29120020071 弯板 Plate Y 1

38 4041001362 软管LGB124-003280 Hose assembly Y 1

39 4041001554 软管LGB125-003070 Hose assembly Y 1

40 4041002512 软管LGB124-003218 Hose assembly Y 1

41 4041002513 软管LGB164-004220 Hose assembly Y 1

42 4041001858 软管LGB124-003210 Hose Y 2
