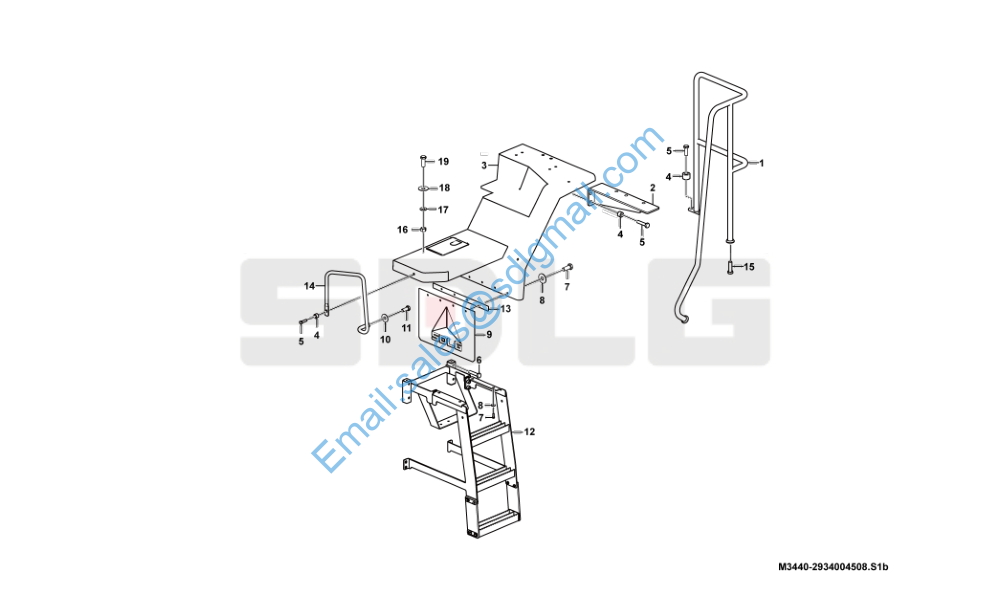

L956F 左台架总成 Platform M3440-2934004508

1 29340045061 左后扶手 Hand rail Y 1

2 29340044861 支撑架 Bracket Y 1

3 29340044951 左台架 Platform Y 1

4 4043001970 防松套LGB331-12*24*16flZnyc-45 Attaching sleeve Y 13

5 4011001251 螺栓GB5783-M12*45flZnyc-8.8-480 Screw Y 11

6 4011001516 螺栓GB5783-M12*75flZnyc-8.8-480 Bolt Y 4

7 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 8

8 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 8

9 29340044921 挡泥板 Rubber plate Y 1

10 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 5

11 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 1

12 29340045021 左梯总成 Ladder Y 1

13 29340044931 压板 Plate Y 1

14 29340046252 左前扶手 Hand rail Y 1

15 4011001508 螺栓GB5783-M12*40flZnyc-8.8-480 Bolt Y 2

16 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 6

17 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 6

18 4015000186 垫圈GB96.1-12EpZn-300HV Washer Y 4

19 4011001243 螺栓GB5783-M12*35flZnyc-8.8-480 Screw Y 4
