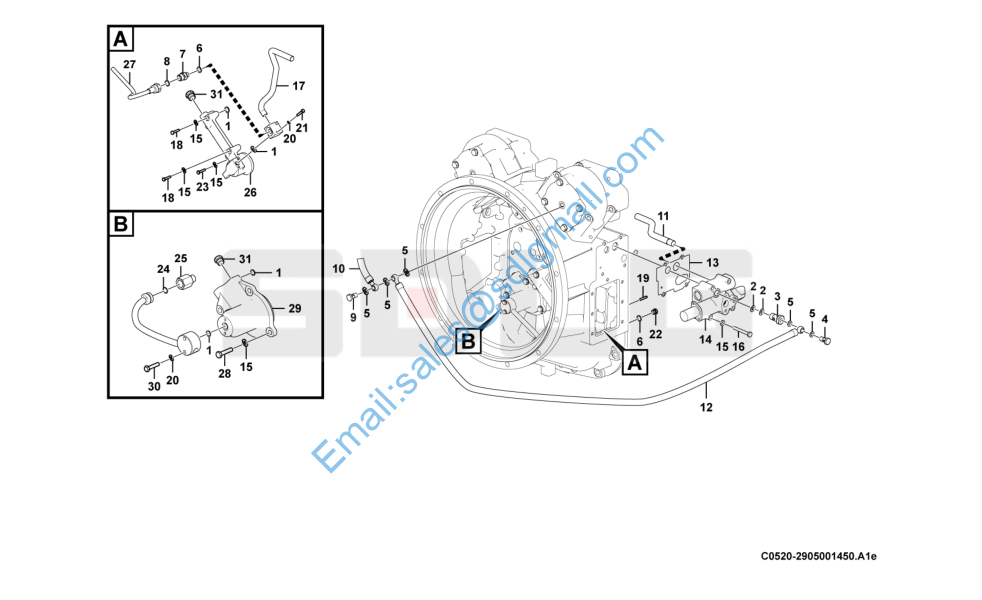

L956F 变矩器润滑系统 Lubricating system C0520-2905001450

1 4030000810 O形圈GB3452.1-11.8*1.80G-FPM O-ring Y 6

2 4030000058 垫圈JB1002-18-T2 Washer Y 2

3 29050014221 螺栓 Screw Y 1

4 29050013121 螺栓 Screw Y 2

5 4030000056 垫圈JB1002-12-T2 Washer Y 7

6 4040000019 O形圈LGB168-21324 O-ring Y 2

7 29050014201 直接头 Nipple Y 1

8 4030000809 O形圈GB3452.1-12.5*1.80G-FPM O-ring Y 1

9 29050012991 螺栓 Screw Y 1

10 29050013221 管 Hose assembly Y 1

11 29050013621 回油管 Tube Y 1

12 29050013131 胶管 Hose assembly Y 1

13 29050013151 密封垫 Gasket Y 1

14 29050012981 变矩器润滑阀 Lubricating oil valve Y 1

15 29050015471 垫圈8 Washer Y 11

16 4011000718 螺栓GB5782-M8*60EpZn-8.8 Screw Y 4

17 29050013771 管 Tube Y 1

18 4011000717 螺栓GB5782-M8*60-8.8 Screw Y 3

19 29050018421 销 Pin Y 2

20 29050015461 垫圈6 Washer Y 4

21 4011000713 螺栓GB5782-M6*40-8.8 Screw N 2

22 4041001459 螺塞LGB135-11422 Plug Y 1

23 4011000715 螺栓GB5783-M8*35-8.8 Screw Y 2

24 4030000811 O形圈GB3452.1-14.0*1.80G-FPM O-ring Y 1

25 29050013791 管接头 Nipple Y 1

26 29050013741 配油器 Oil distributor Y 1

27 29050013751 管 Tube Y 1

28 4011000723 螺栓GB5783-M8*20-8.8 Bolt Y 2

29 29050013581 油分流块 Connection block Y 1

30 4011000966 螺栓GB5782-M6*35-8.8 Screw Y 2

31 29050014701 螺塞 Plug Y 4
