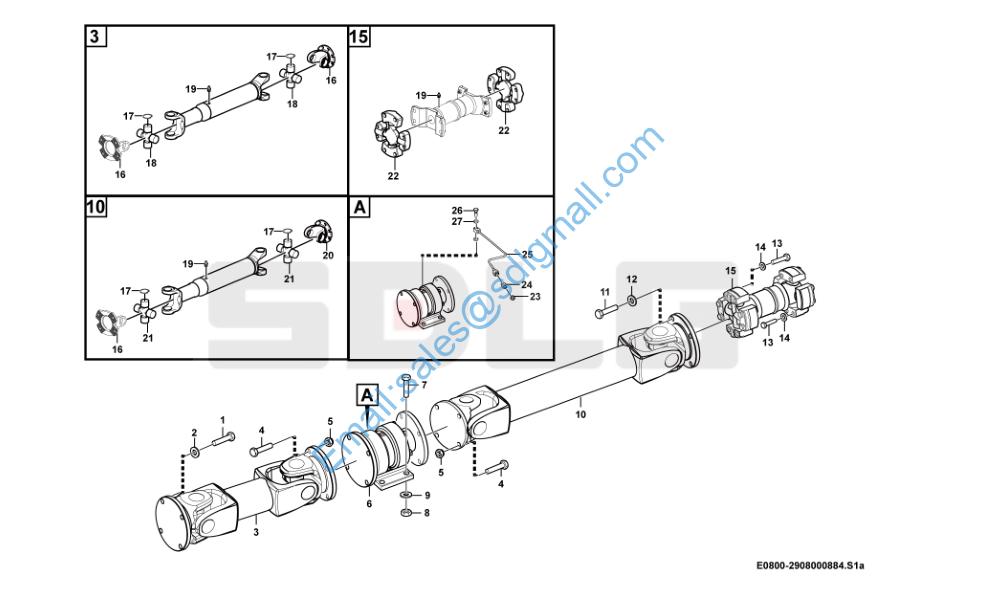

L956F 传动轴总成 Propeller shaft E0800-2908000884

1 4011001363 螺栓GB5786-M14*1.5*40flZnyc-10.9-480 Bolt Y 4

2 4015000435 垫圈GB97.1-14flZnyc-300HV-480 Washer Y 4

3 4110002923 传动轴C52*625 Propeller shaft Y 1

4 4011001398 螺栓GB5785-M14*1.5*55flZnyc-10.9-480 Screw Y 8

5 4013000399 螺母GB889.2-M14*1.5flZnyc-10-480 Nut Y 8

6 4110002185 中间支撑 Propeller shaft Y 1

7 4011001395 螺栓GB5785-M16*1.5*65flZnyc-10.9-480 Screw Y 4

8 4013000402 螺母GB889.2-M16*1.5flZnyc-10-480 Nut Y 4

9 4015000436 垫圈GB97.1-16flZnyc-300HV-480 Washer Y 4

10 4110002543 传动轴CDZ-722 Propeller shaft Y 1

11 4011001519 螺栓GB5786-M14*1.5*35flZnyc-10.9-480 Screw Y 8

12 4015000474 垫圈GB1230-14flZnyc-45-480 Washer Y 8

13 4011001293 螺栓GB5785-M12*1.25*50flZnyc-8.8-480 Screw Y 8

14 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 8

15 4110002924 传动轴K7C*511.7 Propeller shaft Y 1

16 4110002066002 突缘叉1491.707-2201062-J Link yoke Y 3

17 4110002515002 卡簧1491.707-2201063 Lock ring Y 16

18 4110002923001 十字轴总成0125-52133-T Spider Y 2

19 4110002086003 油杯M6 JB/T7940.1-1995 Grease cup N 3

20 4110001757001 突缘叉1491.707-2201062-A Link yoke Y 1

21 4110002923001 十字轴总成0125-52133-T Spider Y 2

22 2908000753001 万向节十字轴总成G5-7126 Spider Y 2

23 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 1

24 29250014121 接头 Nipple Y 1

25 29250022801 油管 Lubricating pipe Y 1

26 29250000291 通油螺栓 Bolt Y 1

27 29250000301 垫片 Shim Y 2
