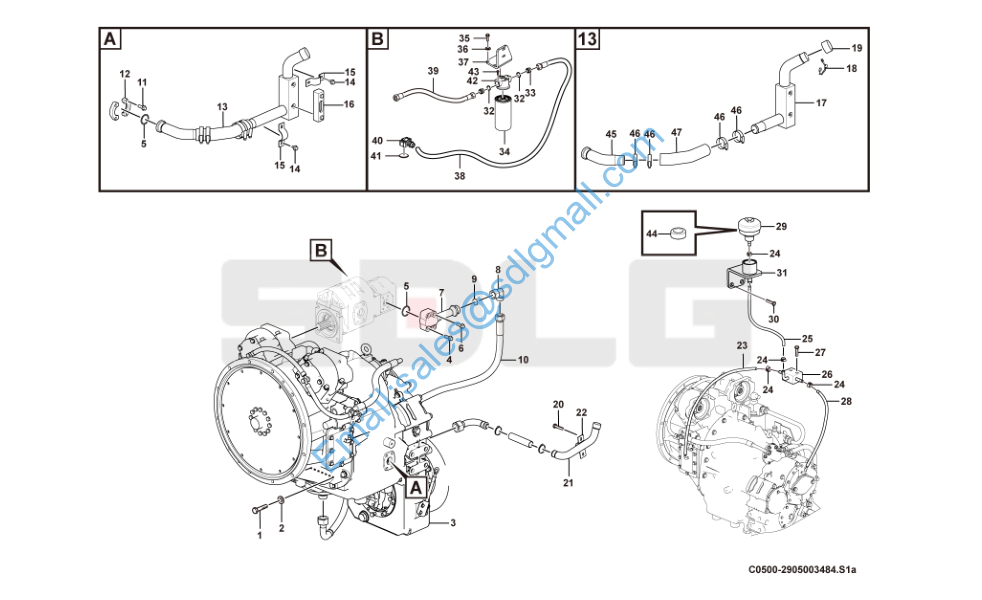

L956F 变速箱总成 Transmission assembly C0500-2905003484

1 4011000184 螺栓GB5783-M10*40EpZn-8.8 Bolt Y 12

2 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 12

3 29050034851 VRT200 变速箱总成 Transmission Y 1

4 4011000163 螺栓GB16674-M10*40EpZn-8.8 Bolt Y 2

5 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2

6 4011000307 螺栓GB16674-M10*45EpZn-8.8 Bolt Y 2

7 29050026421 弯管总成 Tube Y 1

8 4041001211 组合接头LGB143-03625 Nipple Y 2

9 4030000817 O形圈GB3452.1-25.8*1.80G-FPM O-ring Y 2

10 29050021251 变速泵进油管 Hose Y 1

11 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 4

12 4041000056 分体法兰LGB117-312550 Flange half Y 1

13 29050034921 加油管总成 Hose assembly Y 1

14 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 4

15 29050034671 管夹 Clamp Y 2

16 4120005173 液位计YWZ-100 Water level gauge Y 1

17 29050034951 加油弯管总成 Tube Y 1

18 29050025942 连接链 Chain N 1

19 29050029881 加油管盖总成 Oil filler cap N 1

20 4011001337 螺栓GB16674.1-M12*20flZnyc-8.8-480 Screw Y 6

21 29050034691 分动箱加油管总成 Hose assembly Y 1

22 29050034681 管夹 Clamp Y 1

23 4030000973 胶管JB8406-B10*300 Hose Y 1

24 4190000343 喉箍JB8870-d16 Clamp Y 6

25 4120002141 胶管JB8406-B10*1200 Hose assembly Y 1

26 29050017381 三通块总成 Connection block Y 1

27 4011000309 螺栓GB16674-M10*50EpZn-8.8 Bolt Y 2

28 4120000388 胶管JB8406-B10*800 Hose assembly Y 1

29 4110000852 空气滤清器C-M33×2 Air cleaner Y 1

30 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 1

31 29050032691 空滤支架 Bracket Y 1

32 4041000756 O形圈LGB168-02631 O-ring Y 2

33 4041000676 直接头LGB120-03630 Nipple Y 2

34 4110003853 传动油滤清器滤芯 Oil filter N 1

35 4011001208 螺栓GB5783-M12*30flZnyc-10.9-480 Screw Y 2

36 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 2

37 29050034371 滤清器支架 Bracket Y 1

38 29050033681 变速箱至滤清器胶管 Hose assembly Y 1

39 4041002003 软管LGB164-014065 Hose Y 1

40 29050033701 弯管总成 Tube Y 1

41 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 1

42 4110003091 滤座 Seat Y 1

43 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480 Screw Y 2

44 4120005390 空滤滤芯C-X-32 Filter insert Y 1

45 29050034931 加油弯管 Pipe Y 1

46 4017000009 喉箍JB8870-d50 Clamp Y 4

47 4030001386 胶管JB8406-B32*225 Hose Y 1
