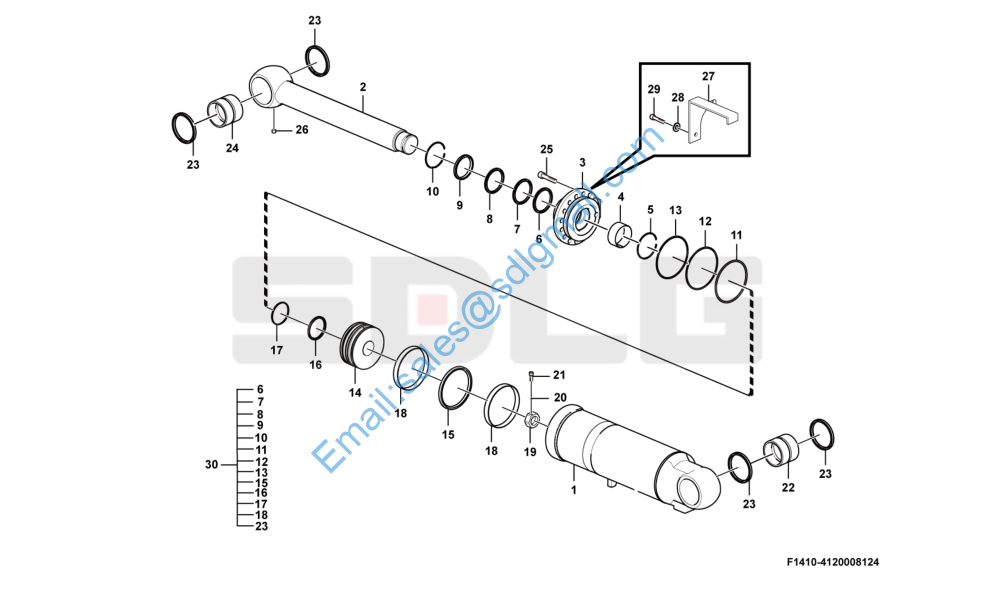

L955FC 转斗油缸(3713CH) Tilt cylinder F1410-4120008124

1 4120008124001 缸筒总成24A141810 Cylinder tube Y 1

2 4120008124002 活塞杆总成24A115610 Piston rod Y 1

3 4120005980021 缸盖24A171710 Cover Y 1

4 4120005980010 衬套24S290501 Bushing Y 1

5 4120005980008 钢丝挡圈-孔用24C090220 Retaining ring Y 1

6 4120005999004 密封件-缓冲24H009004 Sealing ring N 1

7 4120005999005 密封件-活塞杆24F209003 Sealing ring N 1

8 4120005999006 挡圈-U形圈24E009025 Retaining ring N 1

9 4120004336016 密封件-防尘24D209002 Sealing ring N 1

10 4120005980009 钢丝挡圈-孔用24C090240 Retaining ring Y 1

11 4120007577003 O形圈24K11800A O-ring N 1

12 4120008054003 挡圈-O形圈24M11900C O-ring N 1

13 4120007577005 O形圈24K318521 O-ring N 1

14 4120005980005 活塞24C102210 Piston Y 1

15 4120007577006 密封件-活塞24P219002 Piston N 1

16 4120005999013 O形圈24K10900A O-ring N 1

17 4120008054004 挡圈-O形圈24M30950C O-ring N 1

18 4120007577007 支承环24G219021 Sealing ring N 2

19 4120005980011 活塞背母24C103050 Nut Y 1

20 4090000168 钢球GB308-5-GCr6 Ball Y 1

21 4120005872008 螺钉-内六角凹端紧定24T908161 Screw Y 1

22 4120005980012 轴套24C116170 Bushing Y 1

23 4120006998003 销边防尘24R309520 Sealing ring N 4

24 4120005980007 轴套24C117170 Bushing Y 1

25 4120004489011 内六角圆柱头螺钉24T520705 M20x70L Hex. socket screw Y 12

26 4120005801013 油杯24V2100A1 M10x1 Grease cup N 1

27 4120007867003 固定座 24A154830 Seat Y 1

28 4120006030007 垫圈-标准型弹簧24T401202 Washer Y 2

29 4120005980019 螺栓-六角头，全螺纹24TB12201 Screw Y 2

30 4120008124003 密封件包24A104260S Sealing ring kit Y 1
