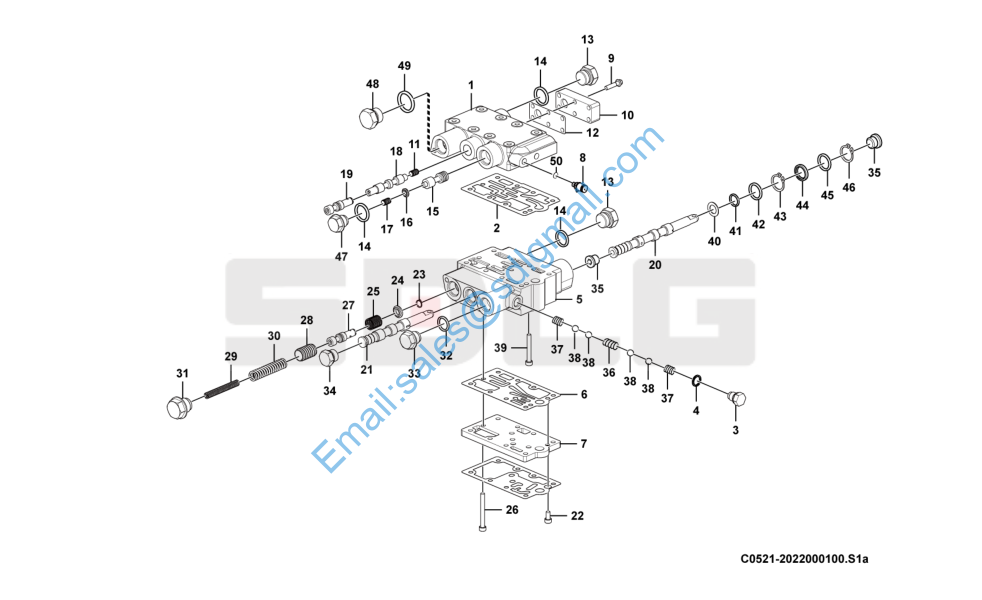

L955FC 变速阀总成 Control valve C0521-2022000100

1 2022000101 上阀体 Valve house N 1

2 2022000107 密封垫I Gasket Y 1

3 2022000112 带槽螺塞M18 Plug N 1

4 4041000768 O形圈LGB168-11524 O-ring Y 1

5 2022000102 下阀体 Valve house N 1

6 2022000108 密封垫II Gasket Y 1

7 2022000109 垫板 Plate N 1

8 4041003297 螺塞LGB181-01419 Plug N 1

9 4011001277 螺栓GB16674.1-M8*35flZnyc-8.8-480 Screw Y 6

10 2022000106 压板 Plate N 1

11 2022000116 弹簧III Spring Y 1

12 2022000111 密封垫V Gasket Y 1

13 2022000103 螺塞M30 Plug N 2

14 4041000685 O形圈LGB168-12631 O-ring Y 5

15 2022000118 调压阀杆 Valve rod N 1

16 29050015231 弹簧导向套 Spring guide N 1

17 29050015211 弹簧 Spring Y 1

18 2022000119 切断阀杆 Valve rod N 1

19 4120008624 切断阀总成 Valve N 1

20 2022000115 档位阀杆 Valve rod N 1

21 2022000117 F-R阀杆 Valve rod N 1

22 4014000033 螺钉GB70.1-M8*16EpZn-8.8 Screw Y 1

23 4015000295 挡圈GB894.1-14-65Mn Retaining ring Y 2

24 29050015431 弹簧导向套 Spring guide N 2

25 29050015381 弹簧 Spring Y 2

26 4014000187 螺钉GB70.1-M8*75EpZn-8.8 Screw Y 1

27 29050015421 阀杆 Valve slide N 2

28 29050015411 调整塞 Trimmer plug N 2

29 29050015361 弹簧 Spring Y 2

30 29050015371 弹簧 Spring Y 2

31 2022000114 带槽螺塞M30 Plug N 2

32 2022000122 带槽螺塞M27 Plug N 1

33 4041000779 O形圈LGB168-12331 O-ring Y 2

34 2022000113 螺塞M27 Plug N 1

35 2022000121 内六角螺塞NPT1/8 Plug N 2

36 2022000104 弹簧I Spring Y 1

37 2022000105 弹簧II Spring Y 2

38 4090000119 钢球GB308-10-GCr15 Ball Y 4

39 4014000158 P-螺钉GB70.1-M8*60EpZn-8.8 Bolt N 1

40 2022000120 垫圈18 Washer N 2

41 4030000012 O形圈GB1235-22*2.4 O-ring Y 2

42 4030000731 0形圈GB1235-30*2.4 O-ring Y 2

43 4120008703 挡 套 Retaining ring N 2

44 4120008704 骨架式油封HG4-692-67 Sealing ring N 2

45 4120008705 防尘圈 Sealing ring N 2

46 4015000283 挡圈GB893.1-30-65Mn Retaining ring Y 2

47 2022000124 螺塞M30 Plug N 1

48 2022000123 圆柱塞 Plug N 2

49 4041000906 O形圈LGB168-10616 O-ring N 2

50 4041003119 矩形圈LGB176-01416 Ring Y 1
