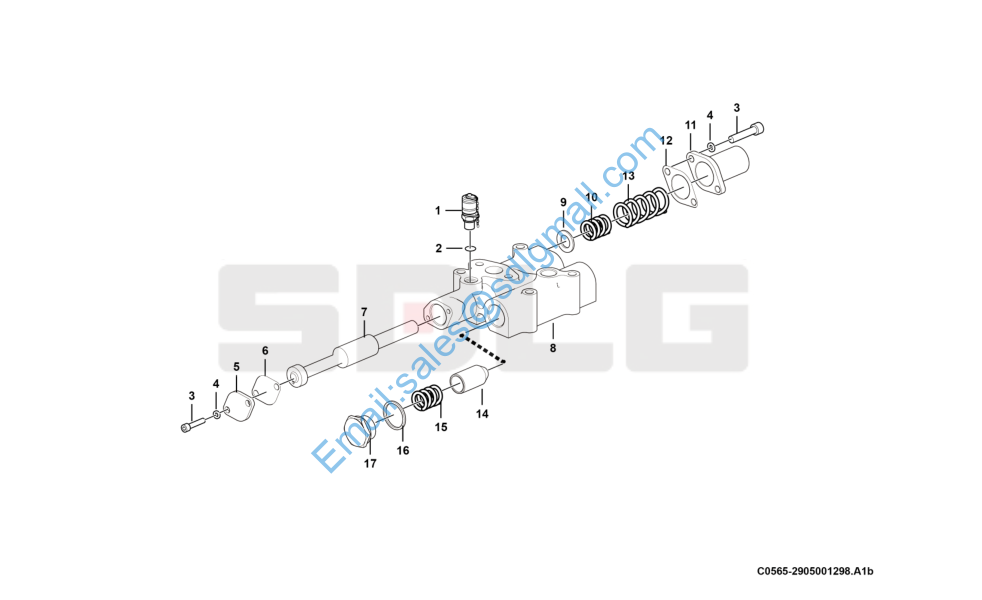

L955FC 变矩器润滑阀 Lubricating oil valve C0565-2905001298

1 4120002109 测压接头SMK20-M14*1.5-VE-SK Joint Y 1

2 4041000767 O形圈LGB168-11124 O-ring Y 1

3 4014000058 螺钉GB70.1-M6*20EpZn-8.8 Screw Y 4

4 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 4

5 29050015011 端盖 Cover N 1

6 29050015451 垫片 Shim Y 1

7 29050015061 阀杆 Valve slide N 1

8 29050015081 阀体 Valve housing N 1

9 29050015071 垫圈 Washer N 1

10 29050015041 弹簧 Spring Y 1

11 29050015001 端盖 Cover N 1

12 29050015441 垫片 Shim Y 1

13 29050015031 弹簧 Spring Y 1

14 29050015051 阀杆 Valve slide N 1

15 29050015021 弹簧 Spring Y 1

16 29050015331 垫圈 Washer N 1

17 29050015341 螺塞 Plug N 1
