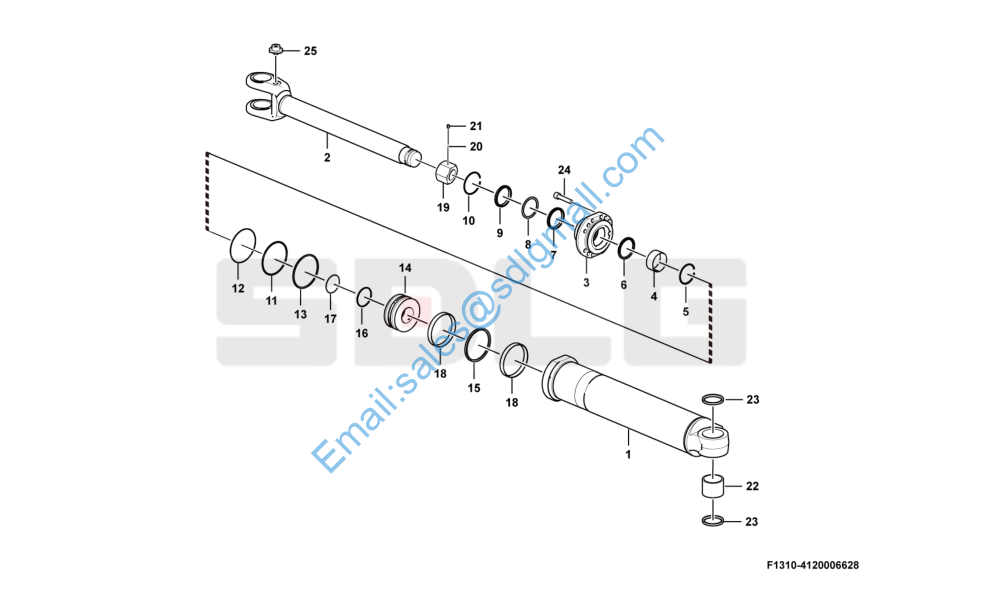

L955FC 动臂油缸(3713CH) Lifting cylinder assembly F1310-4120006628

1 4120006628001 缸筒总成24A138740 Cylinder tube Y 1

2 4120006628002 活塞杆总成24A113870 Piston rod Y 1

3 4120006628003 缸盖24C101130 Cover Y 1

4 4120005980010 衬套24S290501 Bushing Y 1

5 4120005980008 钢丝挡圈-孔用24C090220 Retaining ring Y 1

6 4120006628004 密封件包 Sealing ring kit Y 1

7 4120006628004 密封件包 Sealing ring kit Y 1

8 4120006628004 密封件包 Sealing ring kit Y 1

9 4120006628004 密封件包 Sealing ring kit Y 1

10 4120005980009 钢丝挡圈-孔用24C090240 Retaining ring Y 1

11 4120006628004 密封件包 Sealing ring kit Y 1

12 4120006628004 密封件包 Sealing ring kit Y 1

13 4120006628004 密封件包 Sealing ring kit Y 1

14 4120006628005 活塞24C102090 Piston Y 1

15 4120006628004 密封件包 Sealing ring kit Y 1

16 4120006628004 密封件包 Sealing ring kit Y 1

17 4120006628004 密封件包 Sealing ring kit Y 1

18 4120006628004 密封件包 Sealing ring kit Y 2

19 4120005980011 活塞背母24C103050 Nut Y 1

20 4090000168 钢球GB308-5-GCr6 Ball Y 1

21 4120005685008 螺钉-内六角凹端紧定24T908161 M8*16L Screw Y 1

22 4120006628006 轴套24C116150 Bushing Y 1

23 4120006628004 密封件包 Sealing ring kit Y 2

24 4120006628007 螺钉-内六角圆柱头24T516805 Screw Y 12

25 4120005685012 固定座24C003020 M16 Anchorage Y 1
