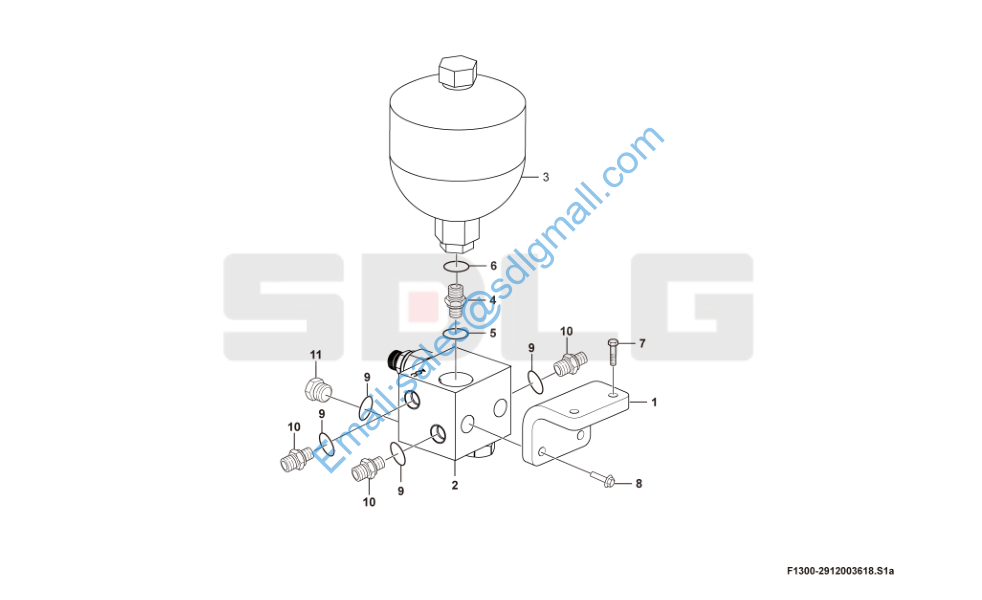

L955FC 先导油源阀组部装 Servo pipe assembly F1300-2912003618

1 29120036171 板 Plate Y 1
2 4120007706 先导油源阀C101000157 Valve Y 1
3 4120002274 蓄能器GXQ-D-0.75L-100 Accumulator Y 1
4 29120036651 直接头M221.5 Nipple Y 1 5 4030000097 O形圈GB3452.1-23.62.65G O-ring Y 1
6 4041000771 O形圈LGB168-11924 O-ring Y 1
7 4011001294 螺栓GB16674.1-M1020flZnyc-8.8-480 Screw Y 2 8 4011001296 螺栓GB16674.1-M820flZnyc-8.8-480 Screw Y 2
9 4041000767 O形圈LGB168-11124 O-ring Y 4
10 4041000604 直接头LGB120-01614 Nipple Y 3
11 4041002902 螺塞LGB135-21422 Plug Y 1
