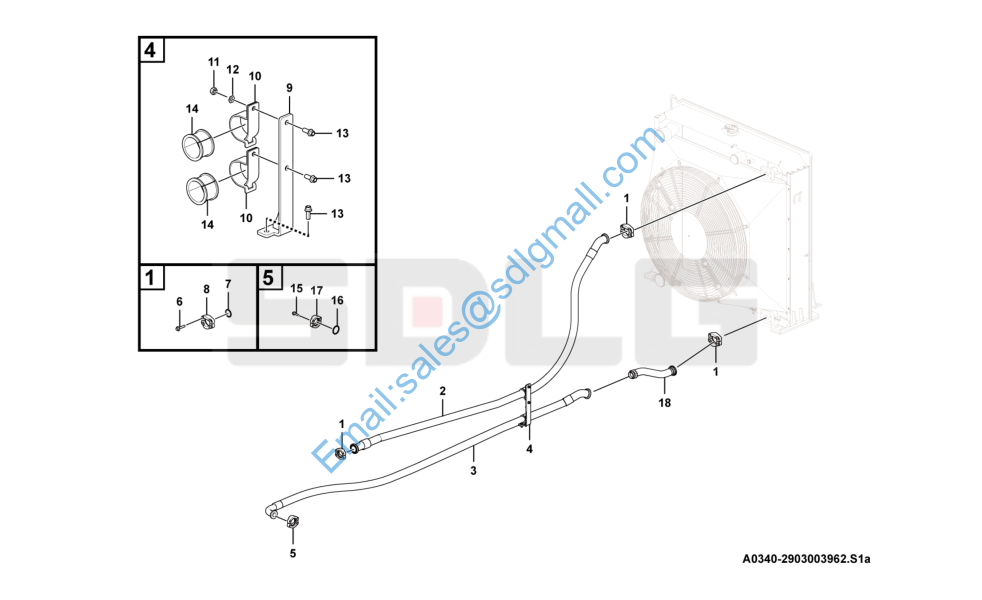

L955FC 液压油散管路组件 Hose assembly A0340-2903003962

1 29030039641 60.3法兰固定组件 Assembly compound N 3

2 29030038211 散热器回油胶管 Hose assembly Y 1

3 29030034511 散热器进油管 Hose Y 1

4 29030039661 液压油散管路支架固定组件 Assembly compound N 1

5 29030039651 50.8法兰固定组件 Assembly compound N 1

6 4011000477 螺栓GB16674-M12*35EpZn-8.8 Bolt Y 12

7 4030000130 O形圈GB3452.1-47.5*3.55G O-ring Y 3

8 4041000011 分体法兰LGB117-314650 Flange half Y 3

9 29030038181 支架 Plate Y 1

10 29030037421 插接管夹D52 Clamp Y 2

11 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 2

12 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 2

13 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 4

14 4041001636 缓冲套LGB123-0846 Cushion sleeve lgb123-0846 Y 2

15 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 4

16 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 1

17 4041000027 分体法兰LGB117-312551 Flange half Y 1

18 29030034521 钢管 Pipe Y 1
