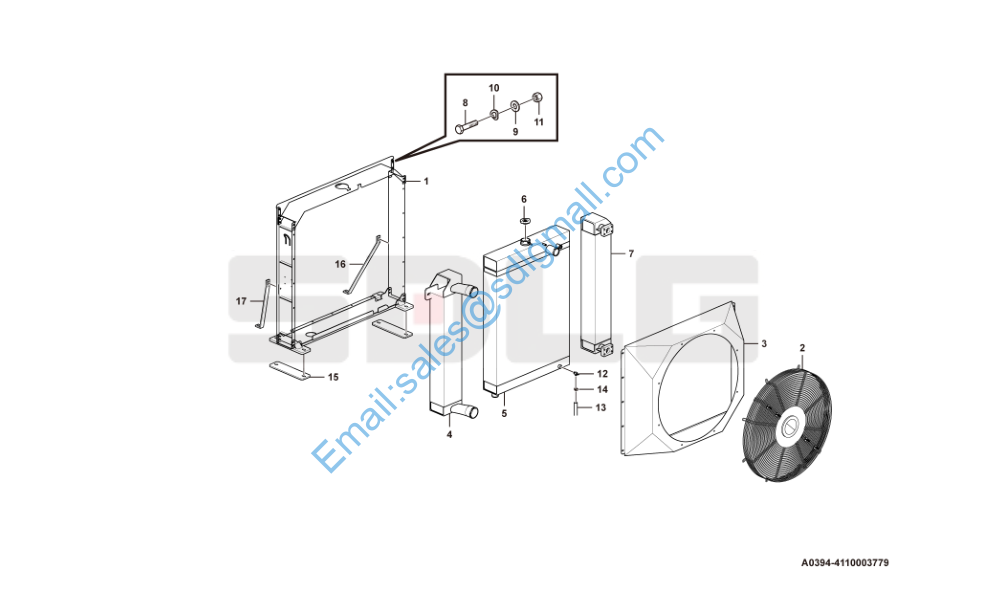

L955FC 散热器总成L955F-W3(320204) Radiator assembly A0394-4110003779

1 4110003779001 组合框架KZ9112895 Radiator bracket N 1

2 4110003779002 防护网HB0370 Fan guard N 2

3 4110003779003 导风罩DB0370 Fan shroud N 1

4 4110002975206 中冷器S9112715A Air cooler Y 1

5 4110002975207 水散S9112699B Radiator Y 1

6 4110002945006 水箱盖711001 Cover Y 1

7 4110003779004 液压油散热器S9113906C Hydraulic oil cooler N 1

8 4110002975215 六角头螺栓610202 Screw N 30

9 4110001688022 平垫630330 Plain washer N 30

10 4110002943004 弹垫632300 Spring washer N 30

11 4110002945016 六角螺母621200 Nut N 4

12 4110002233206 放水阀739001 Drain valve Y 1

13 4110002506023 放水管8000080800 Hose Y 1

14 4110002286007 卡箍990002 Clamp N 1

15 4110003681005 减震垫720064 Damper mat N 2

16 4110002975217 支撑杆A330514 Bracket N 1

17 4110002975218 支撑杆B330513 Bracket N 1
