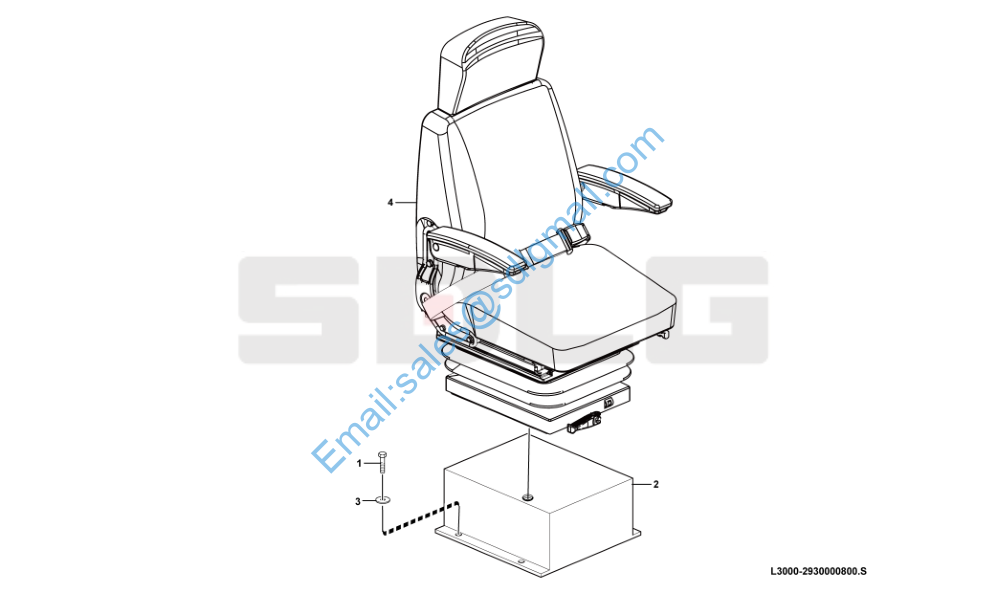

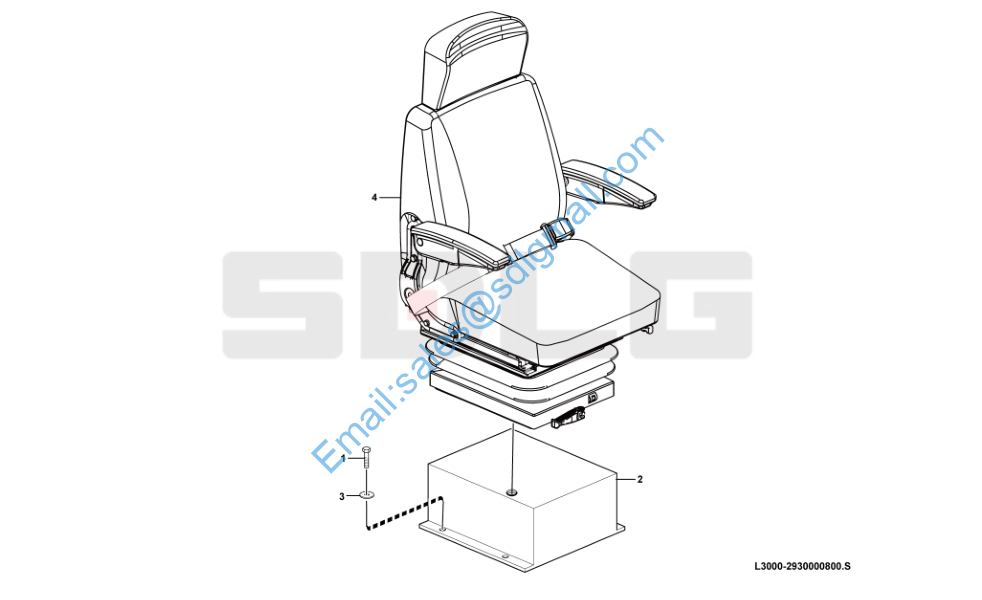

L955FC 座椅总成 Driver seat assembly L3000-2930000800

1 4011000106 螺栓GB5783-M8*25EpZn-8.8 Bolt Y 8
2 29300007561 座椅支架 Seat support Y 1
3 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 8
4 4190002279 座椅LG01C Driver s seat Y 1

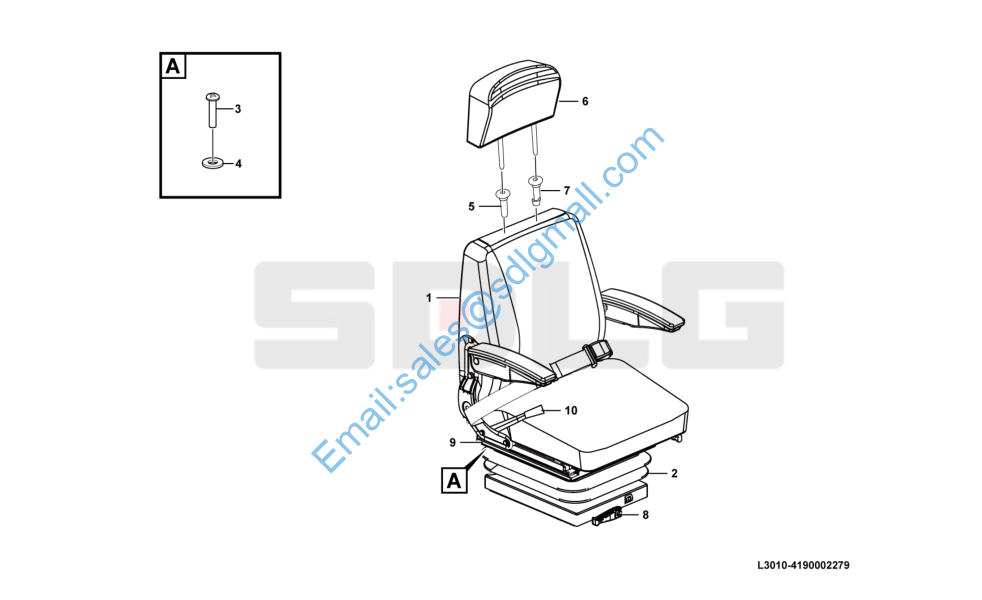

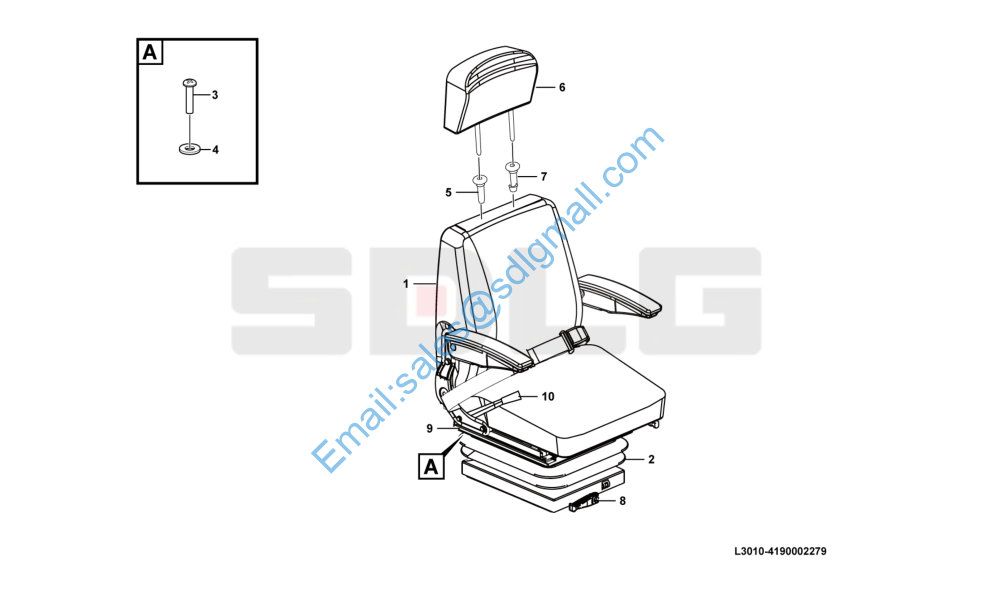

座椅(321013) Driver seat assembly L3010-4190002279

1 4190003024001 座靠背XFZY-2-01 Backrest cushion Y 1

2 4190003024002 下底座XFZY-2-02 Seat support Y 1

3 4014000113 螺钉GB70.1-M8*25EpZn-8.8 Screw Y 4

4 4190002279001 垫圈3XFXY-1-1.0-5 Washer Y 4

5 4190002279002 衬套KTZY-3-04-03 Bushing Y 1

6 4190003024004 头枕XFZY-2-03 Head restraint Y 1

7 4190002279003 可调衬套KTZY-3-04-04 Bushing Y 1

8 4190000927002 体重调节手柄XFZY-1-1.0-4 Stick handle Y 1

9 4190000927004 滑轨部件XFZY-2-02 Control slide N 1

10 4190000927005 调角器部件XFZY-2-00-1/2 Stick handle Y 1
