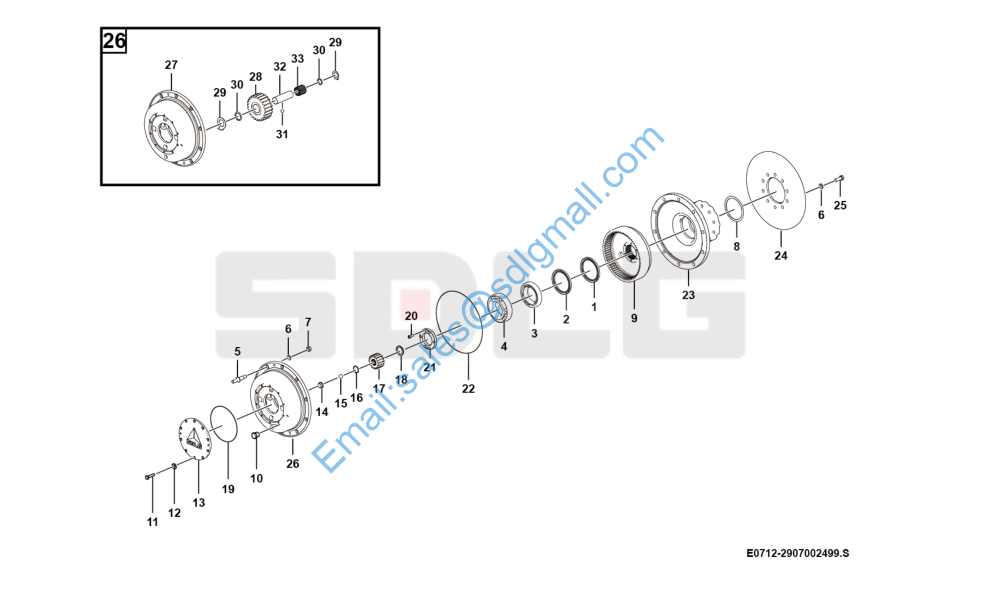

L936 轮边减速器 Hub reduction E0712-2907002499

1 4030001093 密封圈GB13871.1-FB13016012-DWS Sealing ring Y 1

2 4030000046 骨架油封HG4-692-PD130*160*12 Sealing ring Y 1

3 4021000045 滚动轴承GB297-32021 Roller bearing Y 1

4 4021000044 滚动轴承GB297-32220 Roller bearing Y 1

5 29070024101 轮辋螺栓 Screw Y 10

6 29070019751 垫片18 Washer Y 24

7 4013000407 螺母GB6171-M18*1.5flZnyc-8-480 Nut Y 10

8 29070024091 防尘罩 Cover Y 1

9 29070025001 内齿圈 Ring gear Y 1

10 29070021441 磁性螺塞 Plug Y 1

11 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 10

12 4015000025 垫圈GB93-10-65Mn Spring washer Y 10

13 29070007671 盖 Cover Y 1

14 29070009161 定位块 Block Y 1

15 4090000006 钢球GB308-17.462-GCr15 Ball Y 1

16 4015000408 挡圈GB894.1-42-65Mn Retaining ring Y 1

17 29070019821 太阳轮 Sun gear Y 1

18 29070024081 垫片 Shim Y 1

19 29070007681 O型密封圈 O-ring Y 1

20 4014000118 螺钉GB70-M8*1*20-8.8 Screw Y 2

21 29070024171 圆螺母 Round nut Y 1

22 29070019841 O形圈 O-ring Y 1

23 29070019852 轮毂 Hub Y 1

24 29070020651 制动盘 Brake disc Y 1

25 4011001431 螺栓GB5786-M18*1.5*50flZnyc-8.8-480 Bolt Y 14

26 29070024121 行星轮架总成 Planet gear kit Y 1

27 29070019801 行星轮架 Planet carrier Y 1

28 29070019831 行星齿轮 Planet gear Y 4

29 3050900042 挡环 Retaining ring Y 8

30 29070013181 垫片 Shim Y 8

31 4090000007 钢球GB308-8-GCr15 Ball Y 4
32 3050900043 行星齿轮轴 Planet gear shaft Y 4
33 4090000003 滚针GB309-4*38-GCr15 Needle roller Y 112
