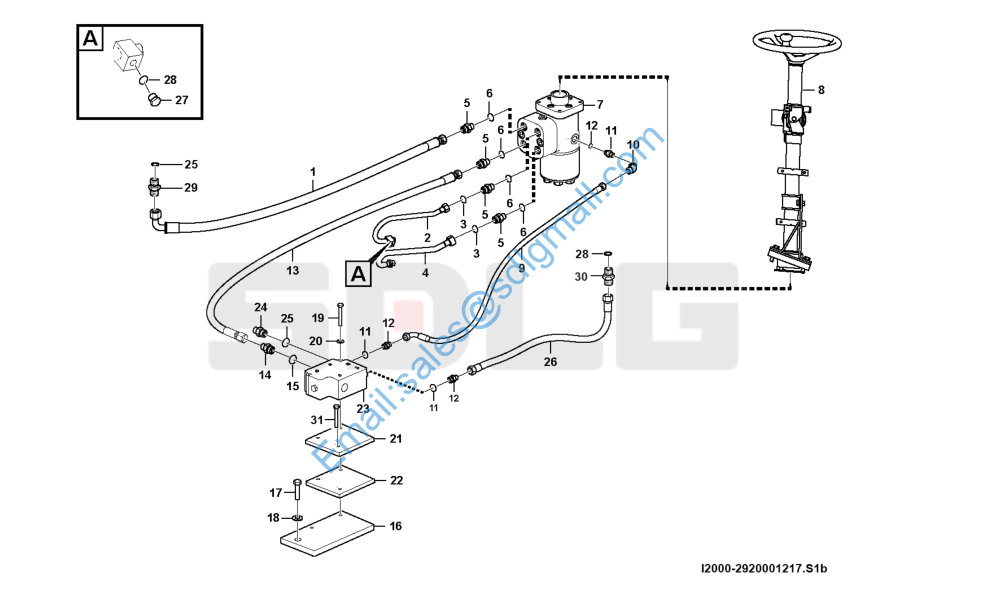

L936 转向器总成 Steering gear system I2000-2920001217

1 4041000165 软管LGB165-010160 Hose assembly Y 1

2 29200009671 转向器出油钢管A Pipe Y 1

3 4030000289 O形圈GB3452.1-16.0*1.80G O-ring Y 2

4 29200009691 转向器出油钢管B Pipe Y 1

5 4041000564 直接头LGB120-02620 Nipple Y 4

6 4041000783 O形圈LGB168-11724 O-ring Y 4

7 4120003948 转向器BZZ6-500A Control valve Y 1

8 29200010591 转向柱总成 Steering column N 1

9 4041001049 软管LGB128-003085 Hose assembly Y 1

10 4041001047 组合接头LGB143-01406 Nipple Y 1

11 4041000131 直接头LGB120-01412 Nipple Y 3

12 4041000784 O形圈LGB168-10924 O-ring Y 3

13 4041000970 软管LGB127-410155 Hose assembly Y 1

14 4041000187 直接头LGB120-02622 Nipple Y 1

15 4041000771 O形圈LGB168-11924 O-ring Y 1

16 29200008461 固定板 Anchor plate Y 1

17 4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt Y 2

18 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 2

19 4011000536 螺栓GB5782-M8*95EpZn-8.8 Screw Y 2

20 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 2

21 29200009841 橡胶板 Rubber mat Y 1

22 29200010071 板 Plate Y 1

23 4120000709 优先阀VLE-150 Priority valve Y 1

24 4041000188 直接头LGB120-03028 Nipple Y 1

25 4041000779 O形圈LGB168-12331 O-ring Y 2

26 4041002540 软管LGB164-003110 Hose assembly Y 1

27 4041000774 螺塞LGB135-01422 Plug Y 1

28 4041000767 O形圈LGB168-11124 O-ring Y 2

29 4041000796 直接头LGB120-02628 Nipple Y 1

30 4041000133 直接头LGB120-01414 Nipple Y 1

31 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 1
