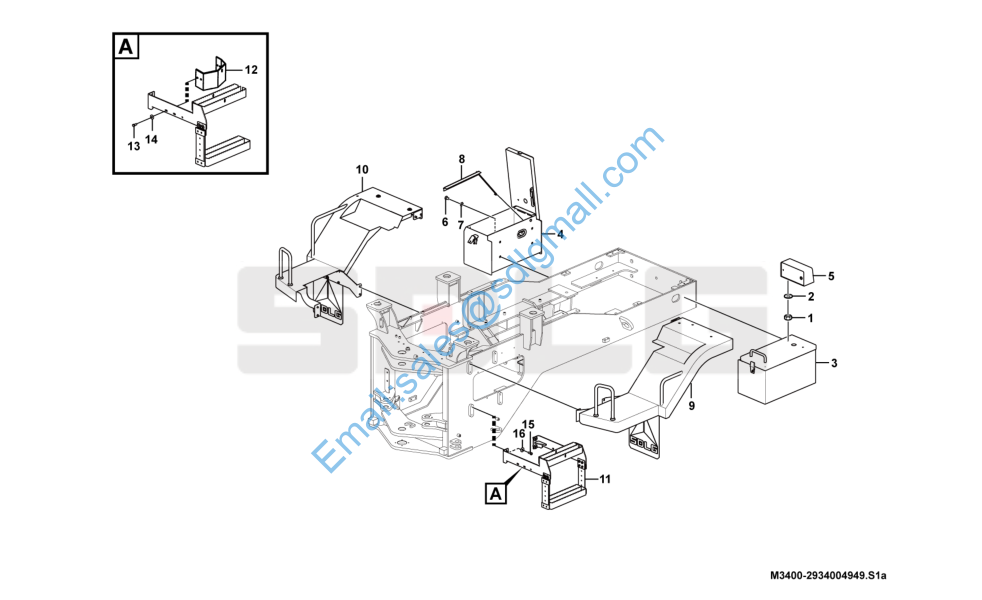

L936 覆盖件附件 Cover accessories M3400-2934004949

1 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 4

2 4013000033 螺母GB6170-M8EpZn-8 Nut Y 4

3 29340048671 左电瓶箱总成 Battery box Y 1

4 29340048751 右电瓶箱总成 Battery box Y 1

5 29340002062 后转向灯罩 Lamp shroud N 2

6 4011001271 螺栓GB5783-M16*25flZnyc-8.8-480 Bolt Y 8

7 4015000439 垫圈GB96.1-16flZnyc-300HV-480 Washer Y 8

8 29340034321 电瓶箱固定总称 Bracket assembly N 2

9 29340043121 左台架总成 Plateform N 1

10 29340043231 右台架总成 Plateform N 1

11 29340034311 下梯总成 Ladder Y 2

12 29340030141 护罩 Protecting cover Y 1

13 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 3

14 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 3

15 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 8

16 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 8
