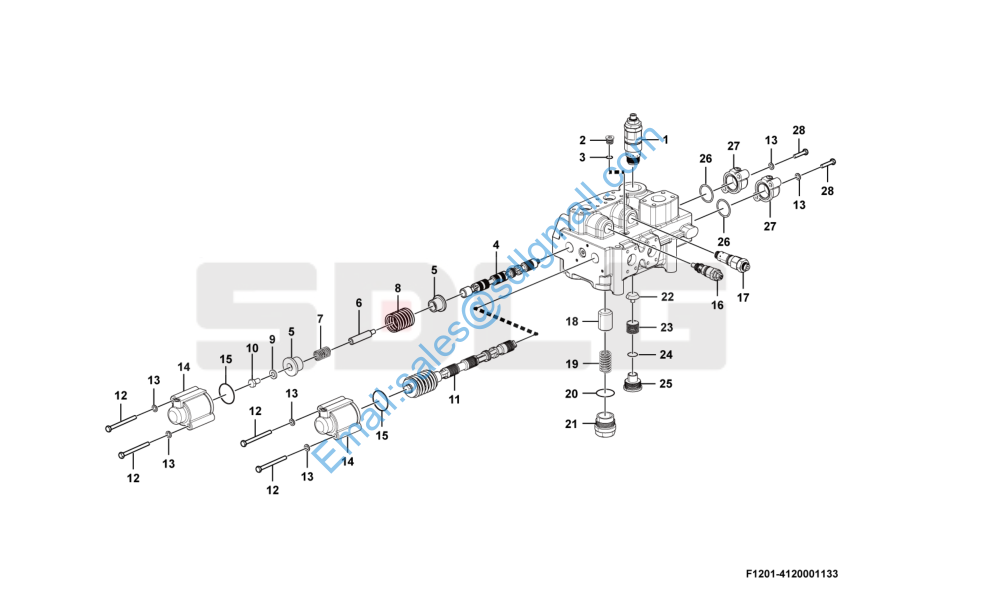

L936 多路阀D32-16(331005) Control valve assembly F1201-4120001133

1 4120001133026 安全阀XDY32G01-00A-16 Valve Y 1

2 4120001054222 螺塞D32-3 Plug Y 3

3 4030000011 O形圈GB1235-20*2.4 O-ring Y 3

4 4120000413007 转斗阀杆D32-12w Valve rod Y 1

5 4120001054214 弹簧座D32-6 Spring seat Y 4

6 4120005199015 阀杆接头D32-21 Joint Y 2

7 4120005199013 弹簧D32-7 Spring N 2

8 4120000413005 弹 簧GD32-8 Spring Y 2

9 4120002278022 垫圈GB97.1-12 Washer Y 2

10 4011000087 螺栓GB5783-M12*20EpZn-8.8 Screw Y 2

11 4120000413006 动臂阀杆D32-2w Valve rod Y 1

12 4011000933 螺栓GB5782-M10*100-8.8 Screw Y 4

13 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 8

14 4120001054243 端盖D32-5a Cover Y 2

15 7200002042 O形圈60*3.1 O-ring N 2

16 4120001133028 低压过载阀Y20G01-00A-12 Valve Y 1

17 4120001133027 高压过载阀D32A.1-00b-18 Valve Y 1

18 4120001054210 补油阀32-15a Relief valve Y 1

19 4120001054209 弹簧D32-14 Spring Y 1

20 7200001075 O形圈50*3.1 O-ring Y 1

21 4120000413004 补油阀盖D32-13a Valve cover Y 1

22 4120001054203 单向阀D32-17 Check valve Y 3

23 4120001054204 弹簧D32-16 Spring Y 3

24 4030000706 O形圈GB1235-44*3.5 O-ring Y 3

25 4120002303101 阀盖D32-19 Valve cover Y 3

26 7200002037 O形圈50*3.5 O-ring N 2

27 4120001054238 端盖D32-1W Valve cover Y 2

28 2880902856056 螺栓M10X25-GB/T5782-2000 Screw Y 4
