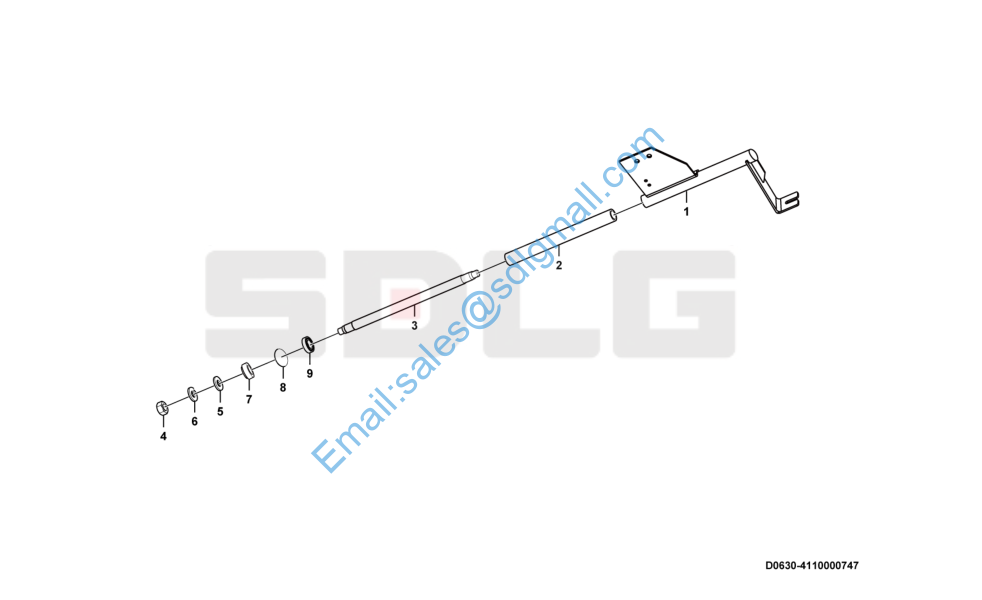

L936 变速连杆机构(130501) Shift mechanism D0630-4110000747

1 4110000747001 支架焊合件LGH936L00001-2 Bracket Y 1
2 4110000747002 套LGH936L0001-2-1 Bushing Y 1
3 4110000747004 轴LGH936L00001-1 Shaft Y 1
4 4013000363 螺母GB6170-M8-EpZn-8 Nut N 2
5 4110002042019 平垫Φ8 PD-002 Washer Y 2
6 4110002042020 弹垫Φ8 TD-002 Washer Y 2
7 4110000747005 连接板LGH956L00002-1 Plate Y 2
8 4110000747006 卡簧KH-001 Lock ring Y 2
9 6399009955 深沟球轴承—6001 Ball bearing N 2
