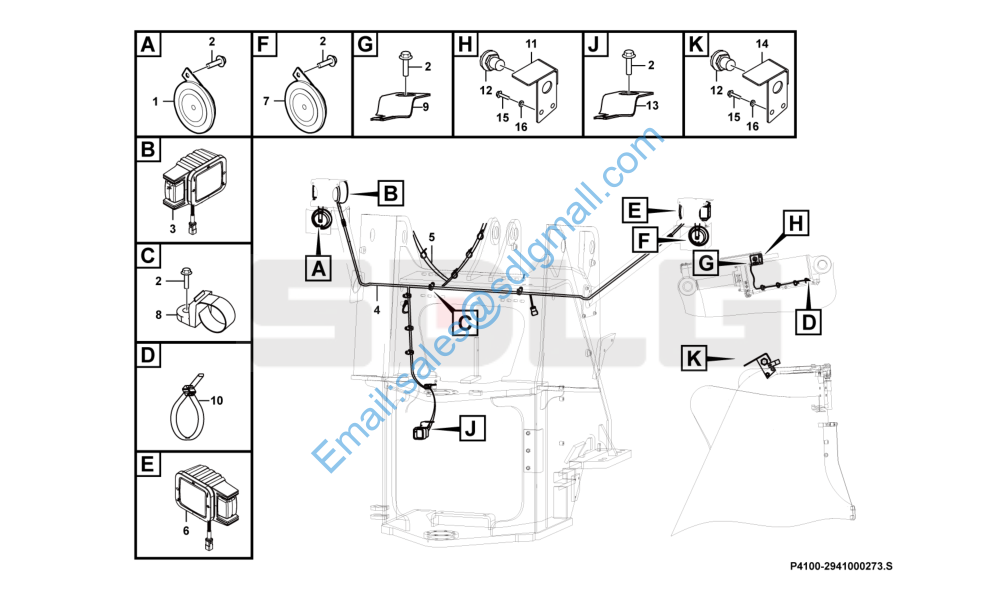

L936 前车架电气总成 Electric equipment P4100-2941000273

1 4130002557 盆型喇叭DL125-100L-01 Horn Y 1

2 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 12

3 4130001731 左前组合灯LFLDH4-1-24V Lamp Y 1

4 29410002721 前车架线束 Wiring harness Y 1

5 29410000121 接近开关转换线束 Wiring harness Y 1

6 4130001732 右前组合灯LFRDH4-1-24V Lamp Y 1

7 4130002556 盆型喇叭DL125-100H-01 Horn Y 1

8 14400342 扎带 Strip clamp Y 8

9 4130001006 CLIP 1027-003-1200 Clip Y 2

10 4190001838 扎丝RTGB-370HD-S Cable tie Y 6

11 29140023071 接近开关支架 Bracket Y 1

12 4130001028 接近开关J7-D10B1/DC Position switch Y 2

13 4130001660 clip Clip N 1

14 29140013911 接近开关支架 Bracket Y 1

15 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 2

16 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 2
