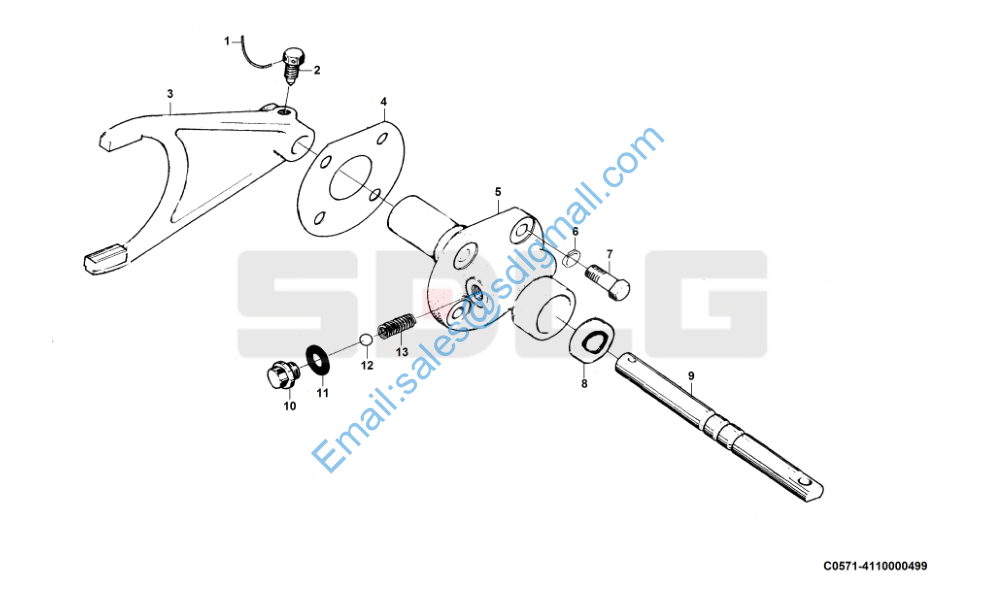

L933 高低换挡拨叉机构（330101） Shift mechanism system C0571-4110000499

1 4110000499289 铁丝φ1 Iron wire N 1

2 4110000038314 紧定螺钉 ZL20-030049 Screw N 1

3 4110000038315 高低换挡拨叉 ZL20-030048 Gear selector fork Y 1

4 4110000038316 纸垫 ZL20-030045 Gasket N 1

5 4110000038317 拨叉支架 ZL20-030047 Bracket Y 1

6 4015000025 垫圈GB93-10-65Mn Spring washer Y 4

7 4011000777 螺栓GB5783-M10*30-8.8 Screw Y 4

8 4110000499290 油封JB2600-SD18*35*10 Sealing ring N 1

9 4110000038033 拨叉轴ZL20-030046 Shaft Y 1

10 4110000038322 螺塞 ZL20-030200 M12*1.25 Plug Y 1

11 4110000038323 垫圈 ZL20-030044 Washer Y 1

12 4090000119 钢球GB308-10-GCr15 Ball Y 1

13 4110000038301 弹簧 ZL20-030055 Φ1.6 Spring Y 1
