L933 连杆机构 Linkage system H1500-2915001489

1 29150014901 动臂 Lifting arm Y 1
2 29150004031 摇臂 Rocker arm Y 1
3 29150004041 连杆 Connecting rod Y 1

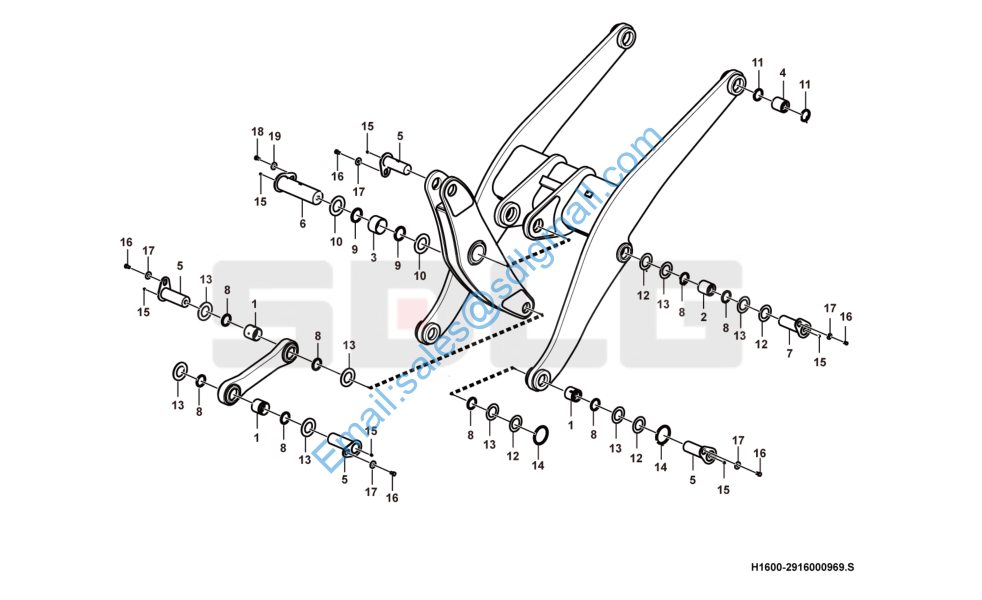

工作装置附件 Accessories H1600-2916000969

1 4043000218 轴套LGB302-60*58A2 Bushing Y 4

2 4043000121 轴套LGB302-60*50A2 Bushing Y 2

3 4043000124 轴套LGB302-85*125A2 Bushing Y 1

4 4043000123 轴套LGB302-65*80A2/LGB302-65*80B2 Bushing Y 2

5 4043000112 销轴LGB301-60*95*170-40Cr Weld pin Y 5

6 4043000660 销轴LGB301-85*132*245/2-40Cr Pin Y 1

7 4043000725 销轴LGB301-60*85*150/2G-40Cr Weld pin Y 2

8 4043000127 防尘圈LGB307-60 Sealing ring Y 12

9 4043000056 防尘圈LGB307-85 Sealing ring Y 2

10 4043000035 垫片LGB303-85*130*1 Shim Y 4

11 4043000128 防尘圈LGB307-65 Sealing ring Y 4

12 4043000126 垫片LGB303-60*100*2 Shim Y 6

13 4043000125 垫片LGB303-60*100*1 Shim Y 10

14 4043000129 O形圈LGB308-98*8 O-ring Y 6

15 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 8

16 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 7

17 4040000050 垫圈LGB001-12flZnyc-480 Washer Y 7

18 4011001261 螺栓GB5783-M16*30flZnyc-8.8-480 Screw Y 1

19 4040000051 垫圈LGB001-16flZnyc-480 Washer Y 1
