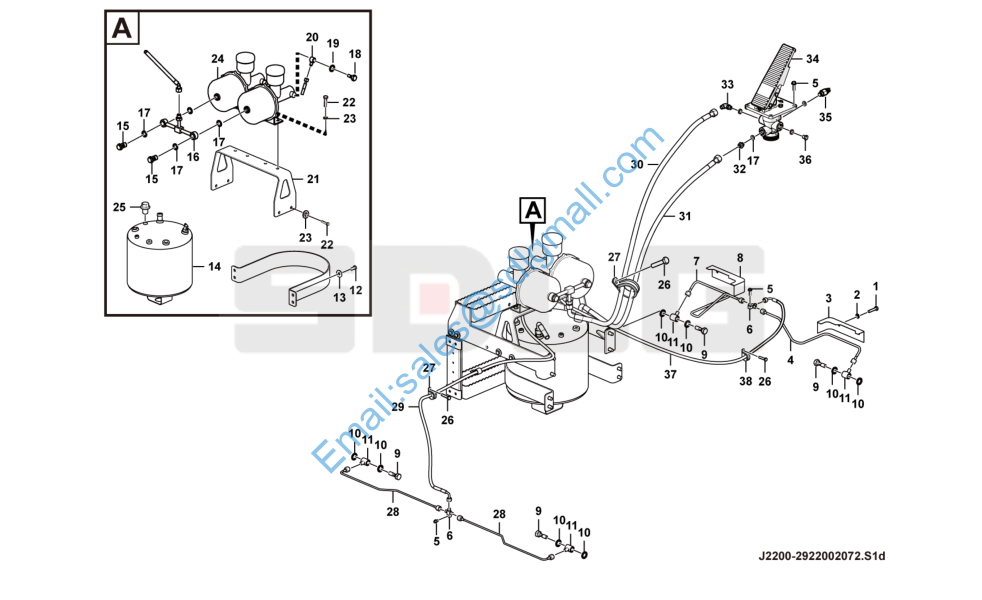

L933 行车制动总成 Travel brake system J2200-2922002072

1 4011001314 螺栓GB5783-M8*12flZnyc-8.8-480 Screw Y 4

2 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 4

3 29220022101 右防护板 Protecting plate Y 1

4 29220020651 前桥右油管 Brake pipe Y 1

5 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 6

6 29220000131 三通接头 Three-way nipple Y 2

7 29220020631 前桥左油管 Brake pipe Y 1

8 29220022091 左防护板 Protecting plate Y 1

9 29220001251 制动器管接头 Nipple Y 4

10 4030000552 O形圈 O-ring Y 8

11 29220001261 制动器接头块 Block Y 4

12 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 4

13 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 4

14 29220015001 储气罐 Air tank N 1

15 29010000041 螺栓 Screw Y 2

16 29220000821 三通管 Three-way nipple Y 1

17 29220000811 垫圈 Washer Y 6

18 29220001231 加力泵管接头 Bolt Y 2

19 4030000551 O形圈 O-ring Y 4

20 29220001241 加力泵接头块 Nipple Y 2

21 29220017191 加力泵支架 Bracket Y 1

22 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 8

23 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 8

24 4120006349 加力泵XZ-60-A Air cylinder N 2

25 4030000311 螺塞JB1000-M10*1EpZn-35 Plug Y 2

26 4011001313 螺栓GB16674.1-M8*12flZnyc-8.8-480 Screw Y 4

27 4041002417 管夹LGB169-B20*12.5 Clamp Y 3

28 29220020671 后桥油管 Brake pipe Y 2

29 4041001580 软管LGB153-202200 Hose assembly Y 1

30 4041002653 软管LGB145-205110 Hose assembly Y 1

31 4041002045 软管LGB145-206110 Hose Y 1

32 29220017601 直接头 Nipple Y 2

33 29220001201 弯接头总成 Nipple Y 1

34 4120001795 气制动阀LY60F Brake valve Y 1

35 4120003757 制动灯开关YK209KLA Pressure switch Y 1

36 4030000055 螺塞JB1000-M22*1.5EpZn-35 Plug Y 1

37 4041001584 软管LGB153-202290 Hose Y 1

38 4041002410 管夹LGB169-A12*10 Clamp Y 1
