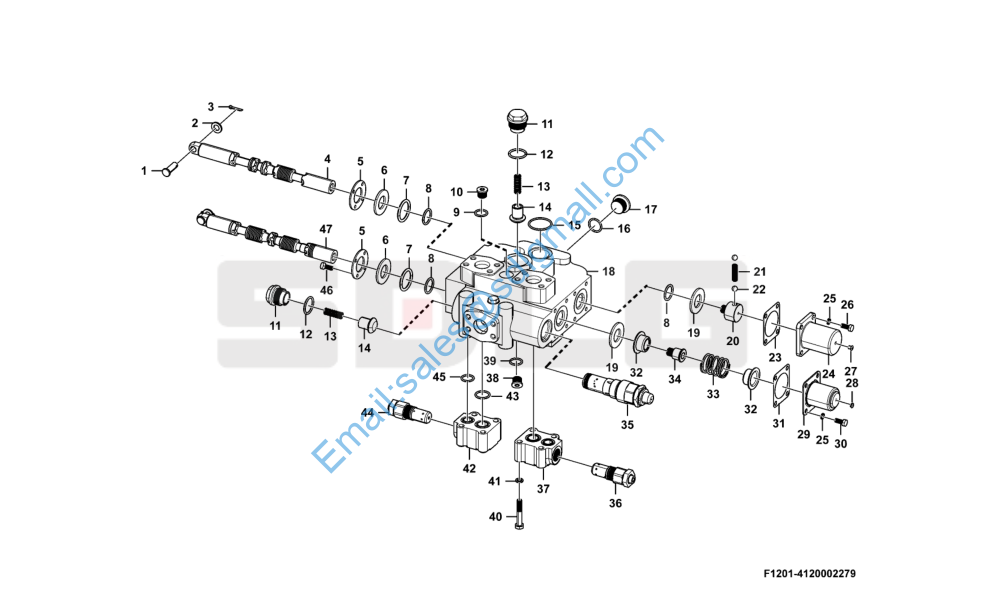

L933 多路阀（331005） Control valve assembly F1201-4120002279\

1 4016000035 开口销GB91-4*20EpZn-Q235A Split pin Y 2

2 4015000320 垫圈GB97.2-12-300HV Washer Y 2

3 4120002279101 圆肩销DF-32-01 Pin Y 2

4 4120002279105 动臂阀杆GDF-25-03d5 Valve rod Y 1

5 4120002279107 压板GDF-32-04 Plate Y 2

6 4120002432407 防尘圈CK28 Sealing ring Y 2

7 4120002432405 垫圈GDF-32-02 Washer Y 2

8 4120002279103 O形圈27.7*3.55 O-ring Y 2

9 4120000448012 O型圈11.8X2.1GB3452.1-82 O-ring Y 1

10 4120005199025 测压口堵头GDF-32-18 Plug Y 1

11 4120002278006 小端盖GDF-25-05 Cover Y 2

12 4030000265 O形圈GB3452.1-28.0*3.55G O-ring Y 2

13 4120002279133 单向阀弹簧GDF-25-07B Valve spring Y 2

14 4120002279134 单向阀GDF-25-08B Direction valve Y 2

15 4030000760 O形圈GB1235-50*3.1 O-ring Y 1

16 4030000013 O形圈GB1235-32*3.1 O-ring Y 1

17 4120005199028 螺塞DF-32-20A Plug Y 1

18 4120002279102 阀体GDF-25-01 Valve body Y 1

19 4120002279114 垫板GDF-32-09A Plate Y 2

20 4120002279116 弹簧座GDF-32-10a Spring seat N 1

21 4120002279123 弹簧GDF-25-26B Spring Y 1

22 4090000277 钢球GB308-9-GCr15 Ball Y 2

23 4120002432427 密封垫GDF-32-17 Sealing Y 1

24 4120002279122 端盖GDF-25-14D Cover Y 1

25 4015000036 垫圈GB93-8-65Mn Spring washer Y 8

26 4011000708 螺栓GB21-M8×20 Screw Y 4

27 4120002279121 端盖橡胶塞GDF-32-20 Rubber plug Y 1

28 4120002279119 端盖橡胶塞GDF-32-19 Rubber plug Y 1

29 4120002432429 端盖GDF-32-12B Valve cover Y 1

30 4011001194 螺栓GB21-M8*15EpZn-8.8 Screw Y 4

31 4120002279125 密封垫GDF-25-17 Gasket Y 1

32 4120002279118 弹簧压座GDF-32-11 Spring seat Y 2

33 4120002432425 回位弹簧GDF-32-16 Spring Y 1

34 4120002432421 弹簧座GDF-32-15 Spring seat N 1

35 4120001133026 安全阀XDY32G01-00A-16 Valve Y 1

36 4120001133027 高压过载阀D32A.1-00b-18 Valve Y 1

37 4120002432430 过载阀阀体ZL50106C1-01A Valve Y 1

38 4120005199026 螺塞GDF-25-18B Plug Y 1

39 4030000281 O形圈GB3452.1-21.2*2.65G O-ring Y 1

40 2808000112012 螺栓M10*60-8.8（GB5782-86） Screw Y 8

41 4015000025 垫圈GB93-10-65Mn Spring washer Y 8

42 4120002432431 过载补油阀阀体 ZL50106C1-01 Valve Y 1

43 4030000013 O形圈GB1235-32*3.1 O-ring Y 2

44 4120002038161 低压过载阀XDYB20G01-00E-12 Valve Y 1

45 4030000981 O形圈GB1235-28*3.1 O-ring Y 2

46 4120000365009 M6X10-GB67-85 Screw Y 8

47 4120002279135 转斗阀杆GDF-32Ⅲ-06c1 Valve rod Y 1
