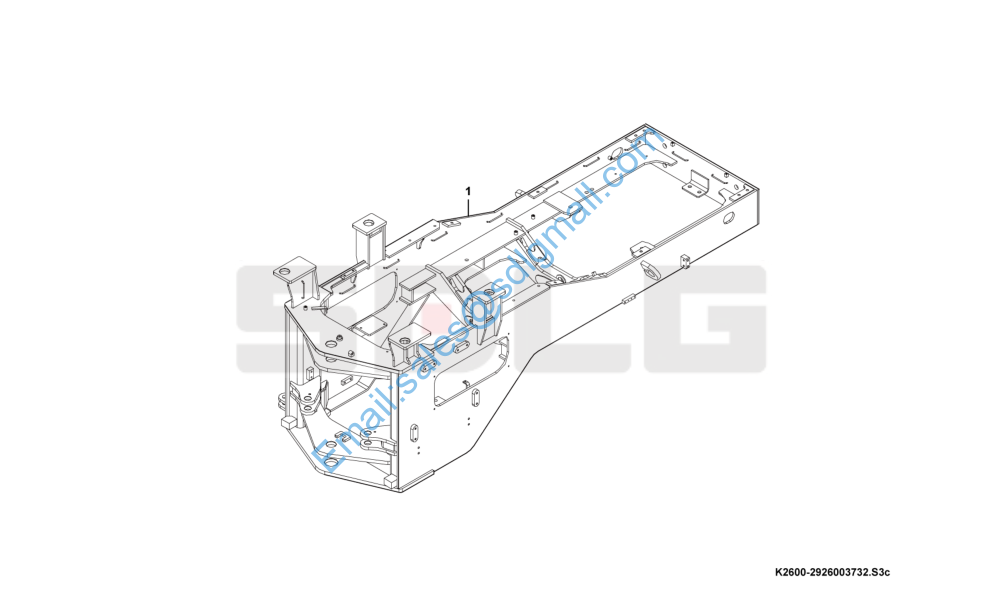

L933 后车架 Rear frame K2600-2926003732

1 29260037323 后车架 Rear frame Y 1

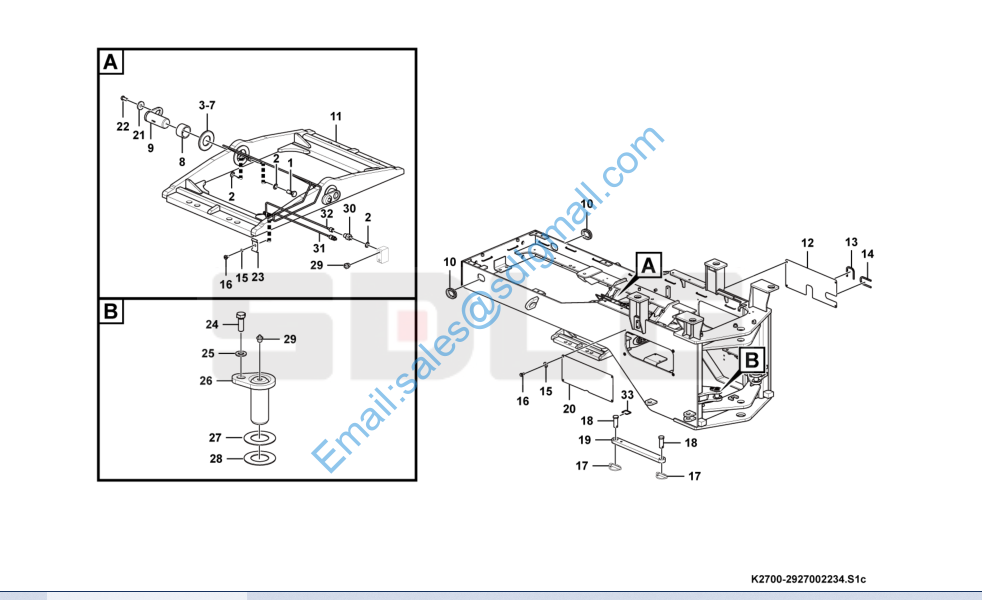

后车架附件 Rear frame system K2700-2927002234

1 29250000291 通油螺栓 Bolt Y 2

2 29250000301 垫片 Shim Y 6

3 29270009321 调整垫片 Shim Y 2

4 29270009311 调整垫片 Shim Y 2

5 29270001071 调整垫片 Shim Y 2

6 29270001051 调整垫片 Shim Y 2

7 29270001061 调整垫片 Shim Y 2

8 29270007831 套 Bushing Y 2

9 29270016001 焊接销轴 Pin Y 2

10 29270009101 走线胶套 Rubber sleeve Y 2

11 29270007841 副车架 Rear axle bridge Y 1

12 29270018122 左盖板 Cover plate Y 1

13 4043000987 卡子胶条LGB320-U250 Sealing strip Y 1

14 4043001017 卡子胶条LGB320-U290 Sealing strip Y 1

15 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 9

16 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 9

17 29270000081 卡环 Lock ring Y 2

18 29270013881 锁定销轴 Pin Y 2

19 29270013891 锁定杆 Lock lever Y 1

20 29270025351 右盖板 Cover plate N 1

21 4040000001 垫圈LGB001-12 Washer Y 2

22 4011000087 螺栓GB5783-M12*20EpZn-8.8 Screw Y 2

23 29270021761 压板 Plate Y 1

24 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 2

25 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 2

26 29270018131 后转向销轴 Pin Y 2

27 4043000064 垫片LGB303-40*70*1 Shim Y 4

28 4043000325 垫片LGB303-40*70*2 Shim Y 4

29 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 4

30 29250014121 接头 Nipple Y 2

31 29270018101 后输油管 Lubricating pipe Y 1
32 29270017321 前输油管 Lubricating pipe Y 1
33 29280010021 挂钩 Tensioning hook Y 1
