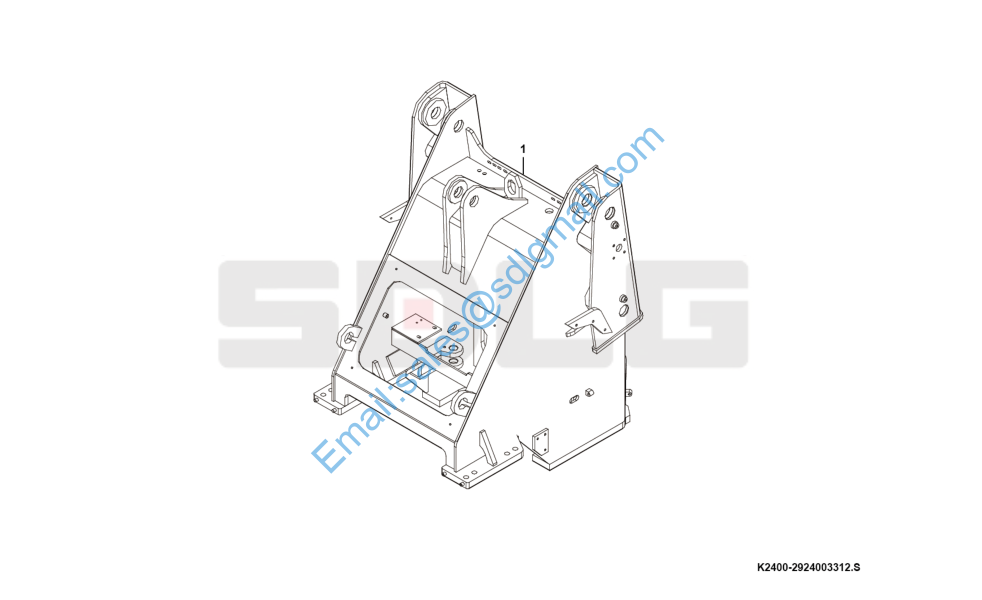

L933 前车架 Front frame K2400-2924003312

1 29240033121 前车架 Front frame Y 1

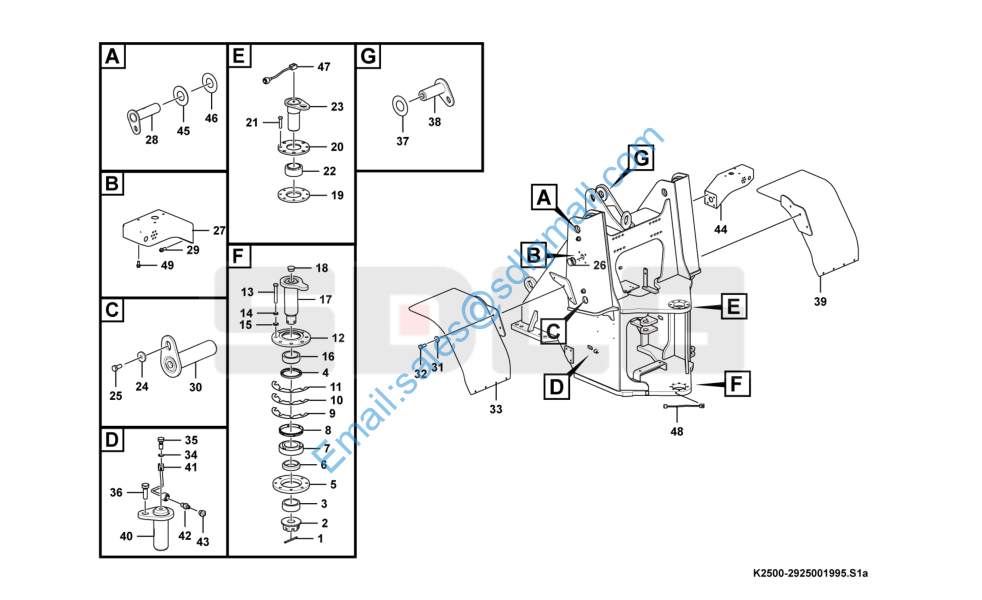

前车架附件 Front frame system K2500-2925001995

1 4016000043 开口销GB91-8*80EpZn-Q235A Split pin Y 1

2 29250008711 开槽螺母 Nut Y 1

3 29250011291 套 Sleeve Y 1

4 4043000055 防尘圈LGB307-80 Sealing ring Y 2

5 29250011261 盘 Flange Y 1

6 29250011281 套 Sleeve Y 1

7 4021000134 滚动轴承GB297-32212 Roller bearing Y 2

8 29250011761 间隔套 Sleeve Y 1

9 4043002527 开口垫片LGB338-4*13*115*0.5 Shim Y 2

10 4043002526 开口垫片LGB338-4*13*115*0.2 Shim Y 2

11 4043002525 开口垫片LGB338-4*13*115*0.1 Shim Y 2

12 29250011301 盘 Flange Y 1

13 4011001122 螺栓GB5782-M12*85EpZn-8.8 Screw Y 8

14 4015000026 垫圈GB93-12-65Mn Spring washer Y 16

15 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 10

16 29250011271 套 Sleeve Y 1

17 29250015711 下铰接销 Pin Y 1

18 29270009421 塑料塞 Plastic plug Y 1

19 29250004021 盘 Flange Y 1

20 29250004011 盘 Flange Y 1

21 4011000186 螺栓GB5782-M12*55EpZn-8.8 Bolt Y 8

22 4021000042 关节轴承GB9163-GE60ES-2RS Spherical plain bearing Y 1

23 29250004041 上铰接销 Pin Y 1

24 4040000050 垫圈LGB001-12flZnyc-480 Washer Y 6

25 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 6

26 29250001351 走线胶套 Rubber sleeve Y 5

27 29250014911 左前大灯架 Lantern bracket Y 1

28 4043000152 销轴LGB301-65*122R*235G-40Cr Weld pin Y 2

29 4011001240 螺栓GB16674-M12*25flZnyc-8.8-480 Screw Y 8

30 4043000205 销轴LGB301-60*125*235G-40Cr Weld pin Y 2

31 29330059111 垫圈12 Washer Y 6

32 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 6

33 29250012971 左前挡泥瓦 Front fender Y 1

34 29250000301 垫片 Shim Y 12

35 29250000291 通油螺栓 Bolt Y 4

36 4011000090 螺栓GB5783-M12*35EpZn-8.8 Bolt Y 2

37 4043000151 垫片LGB303-60*120*1 Shim Y 2

38 4043000598 销轴LGB301-60*92*165G-40Cr Pin Y 1

39 29250012981 右前挡泥瓦 Front fender Y 1

40 29250019721 转向销轴 Weld pin Y 2

41 29250014462 转向缸油管 Lubricating pipe Y 2

42 29250014121 接头 Nipple Y 4

43 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 9

44 29250014921 右前大灯架 Lantern bracket Y 1

45 4043000197 垫片LGB303-65*140*1 Shim Y 2

46 4043000198 垫片LGB303-65*140*2 Shim Y 2

47 29250014591 上铰接销润滑油管 Lubricating pipe Y 1

48 29250014601 下铰接油管 Lubricating pipe Y 1

49 4011001432 螺栓GB16674-M10*20flZnyc-8.8-480 Screw N 6
