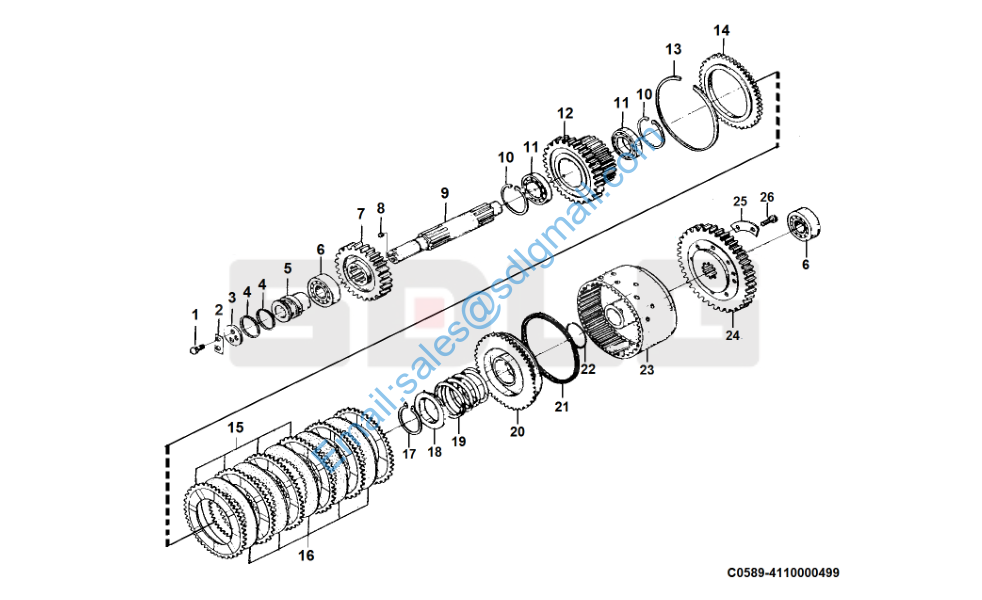

L933 中间轴总成（370804） Intermediate shaft assembly C0589-4110000499

1 4110002525003 螺栓01010-80816 M8*16 Screw Y 2

2 4110000499054 止动垫片1BD08-00035 Retaining ring Y 1

3 4110000499053 轴端档板1BD08-00034 Guard plate Y 1

4 4110001984014 密封环φ52 BD05-00043B Sealing ring Y 2

5 4110000499090 内封油套1BD08-12008 Sleeve Y 1

6 4021000167 P轴承GB297-32207 Bearing Y 2

7 4110000499070 齿轮1BD08-11002 Gear 1bd08-11002 Y 1

8 4110000499089 闷塞1BD08-12007 Plug Y 1

9 4110000499069 中间轴1BD08-11001 Middle axes 1bd08-11001 Y 1

10 4015000289 挡圈GB893.1-75-65Mn Retaining ring Y 2

11 4021000010 滚动轴承GB276-6009 Ball bearing Y 2

12 4110000499071 齿轮1BD08-11003 Gear Y 1

13 4110000499087 挡圈1BD08-12002 Retaining ring Y 1

14 4110000499088 外端盘1BD08-12003 Disc Y 1

15 4110000499086 外摩擦片0BD08-12200 Friction disc Y 6

16 4110000499085 内摩擦片0BD08-12013 Friction disc Y 5

17 4015000155 挡圈GB894.1-60-65Mn Retaining ring Y 1

18 4110000499093 弹簧座1BD08-12014 Spring seat Y 1

19 4110000499083 弹簧0BD08-12004 Spring Y 1

20 4110000499092 活塞1BD08-12012 Piston Y 1

21 4110000499084 油封圈0BD08-12005 Sealing ring Y 1

22 4030000638 O形圈GB1235-60*3.1 O-ring Y 1

23 4110000499094 离合器壳总1BD08-12100 Housing N 1

24 4110000499072 齿轮1BD08-11004 Gear 1bd08-11004 N 1

25 4110000499091 止动垫1BD08-12011 Retaining ring Y 4

26 4110000960005 螺栓01010-81025 Screw Y 8
