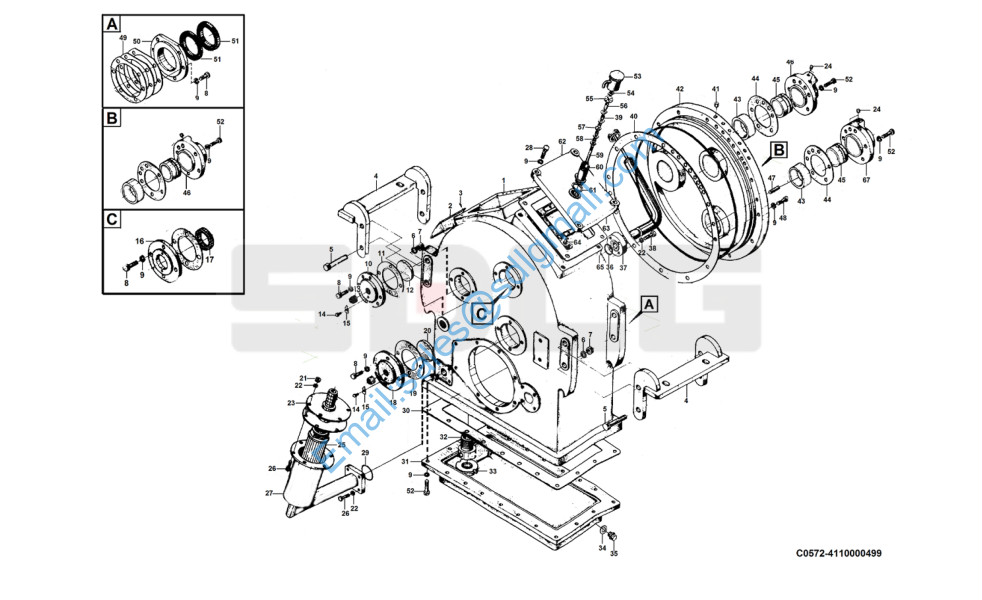

L933 箱体部件(330101) Transmission housing C0572-4110000499
L933 箱体部件(330101) Transmission housing C0572-4110000499

1 4110000038101 箱体 ZL20-030001 Housing Y 1
2 4110000499291 变速箱铭牌D85A-18-39 Name plate N 1
3 4110000499292 抽芯铆钉JB4005-1985 3.2*7 Rivet N 4
4 4110000499228 支架ZL20-030057X13 Bracket Y 2
5 4011000877 螺栓GB5783-M16*80EpZn-8.8 Screw Y 8
6 4015000098 垫圈GB93-16-65Mn Spring washer Y 8
7 4013000016 螺母GB6170-M16EpZn-8 Nut Y 8
8 4011001164 螺栓GB5783-M10*25-8.8 Screw Y 18
9 4015000025 垫圈GB93-10-65Mn Spring washer Y 57
10 4110000038110 端盖 ZL20-030003 Cover plate Y 1
11 4110000038111 纸垫 ZL20-030002 Gasket N 2
12 4110000038112 调整环 ZL20-030005 Adjusting washer Y 1
13 4110000038113 调整螺丝 ZL20-030006 Screw Y 2
14 4110000499293 六角头螺栓GB5783-2000 M6*6 Screw N 2
15 4110000038115 止动片 ZL20-030004 Thrust washer Y 2
16 4110000038116 输人轴端盖 ZL20-030008 Cover plate Y 1
17 4110000499294 唇形密封圈GB9877.1-88 FB45*62*8 Sealing ring Y 1
18 4110000038118 中间轴端盖 ZL20-030058 Cover plate Y 1
19 4110000499295 纸垫ZL20-030025A Gasket N 1
20 4110000038120 挡油盖调整环 ZL20-030059 Adjusting washer Y 1
21 4013000162 螺母GB6170-M8-8 Nut Y 6
22 4015000036 垫圈GB93-8-65Mn Spring washer Y 14
23 4110000038049 法兰接头ZL20-030062-2W1 Nipple N 1
24 4110000038167 闷塞 Q21-34 7 Plug N 6
25 4110000038125 滤芯WU-100*100-J Filter insert Y 1
26 4011000724 螺栓GB5783-M8*25-8.8 Bolt Y 10
27 4110000038380 滤油器组件 ZL20-030062W1X13 Oil filter Y 1
28 4011001139 螺栓GB5783-M10*35-8.8 Screw Y 4
29 4110000499296 密封圈4*50 Q26-01-17 Sealing ring N 1
30 4110000499297 垫密片ZL20-030020 Gasket N 1
31 4110000038131 油底壳 ZL20-034001 Oil sump Y 1
32 4110000038132 吸油管 ZL20-030007 Pipe Y 1
33 4110000038133 永久磁铁 ZL20-030043 Magnet N 1
34 4110000499225 垫圈ZL20-034004X Washer N 1
35 4110000499226 螺塞ZL20-034005 Plug N 1
36 4110000499298 O形圈GB1235-76 40*3.1 O-ring N 1
37 4110000038139 油管盖 ZL20-037200 Cover plate Y 1
38 4011001500 螺栓GB5783-M8*30flZnyc-8.8-480 Screw Y 4
39 4110000038139 油管盖 ZL20-037200 Cover plate Y 1
40 4110000038140 大端盖纸垫 ZL20-030063 Gasket N 1
41 4110000038168 闷塞 ZL20-031005 Plug N 6
42 4110000499299 变速箱大端盖组件ZL20-031000D Cover N 1
43 4110000038143 轴套 ZL20-030032 Bushing Y 3
44 4110000038326 BS428变速箱全套纸垫 Gasket Y 3
45 4110000038145 外封轴套 ZL20-035002 Bushing Y 3
46 4110000038382 进油端盖(一档、倒档) ZL20-035001-B Cover plate Y 2
47 4110000499300 圆柱销GB119.1-2000 10*40 Pin N 1
48 4014000134 螺钉GB70.1-M10*30EpZn-8.8 Screw Y 13
49 4110000038149 输出轴调整垫片 ZL20-030022 Shim N 1
50 4110000038150 前输出轴封油盖 ZL20-030026 Cover Y 1
51 4110000499301 唇形密封圈GB9877.1-88 FB65*90*10 Sealing ring N 2
52 4011000777 螺栓GB5783-M10*30-8.8 Screw Y 35
53 4110000038153 通风器盖 ZL20-030101A Cover plate Y 1
54 4110000038153 通风器盖 ZL20-030101A Cover plate Y 1
55 4110000038155 通风片 ZL20-030103 Plate N 1
56 4110000038156 铜套 ZL20-030105A Spacer sleeve N 1
57 4110000038157 迷宫片 ZL20-030106 Spacer N 5
58 4110000038158 铜隔套 ZL20-030107A Spacer sleeve N 4
59 4110000038159 长螺丝 ZL20-030102 Screw N 1
60 4110000038160 壳体 ZL20-030109B Housing N 1
61 4110000038161 纸垫 ZL20-030108 Gasket N 1
62 4110000499304 箱盖ZL030039 Cover plate N 1
63 4110000038163 挡油盖 ZL20-030060 Cover plate N 1
64 4019000051 铆钉GB867-4*18-BL2 Rivet N 4
65 4110000038165 纸垫 ZL20-030040 0.5 Gasket N 1
66 4011001139 螺栓GB5783-M10*35-8.8 Screw Y 4
67 4110000038383 进油端盖 (二档)ZL20-035001-C Cover plate Y 1
