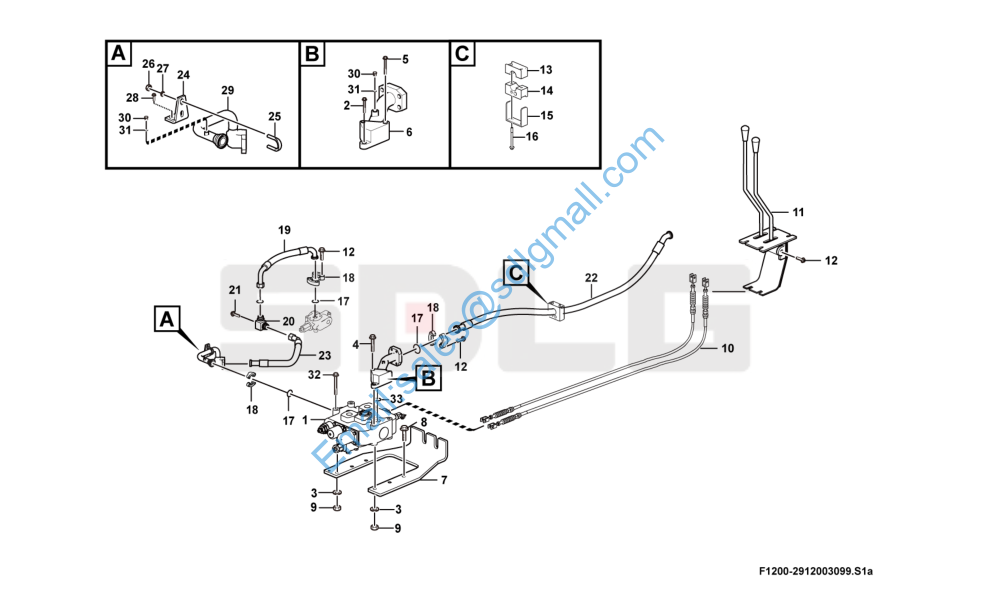

L933 液压操纵总成 Hydraulic control F1200-2912003099

1 4120002279 多路阀DFS-25-16 Control valve Y 1

2 4011000056 螺栓GB5782-M12*145EpZn-8.8 Bolt Y 1

3 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 8

4 4011000230 螺栓GB16674-M10*65EpZn-8.8 Bolt Y 1

5 4011000057 螺栓GB5782-M12*165EpZn-8.8 Bolt Y 1

6 29120005021 多路阀回油钢管 Pipe Y 1

7 29120028831 多路阀固定板 Anchor plate Y 1

8 4011000477 螺栓GB16674-M12*35EpZn-8.8 Bolt Y 4

9 4013000011 螺母GB6170-M12EpZn-8 Nut Y 8

10 29120009782 操纵软轴 Flexible shaft Y 2

11 4120001453 操纵机构LG12-933CZJG21 Control mechanism Y 1

12 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 20

13 29120030951 橡胶管夹 Hose clamp Y 2

14 29120030961 橡胶管夹 Hose clamp Y 2

15 29120030971 压板 Plate Y 2

16 4011001481 螺栓GB5782-M10*110flZnyc-8.8-480 Screw Y 4

17 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 4

18 4041000056 分体法兰LGB117-312550 Flange half Y 4

19 29120005071 优先阀EF口胶管 Hose assembly Y 1

20 29120005081 二通接头 Nipple Y 1

21 4011000560 螺栓GB16674-M12*25EpZn-8.8 Bolt Y 2

22 4041000706 软管LGB163-012203 Hose assembly Y 1

23 29120005051 多路阀进油胶管 Hose assembly Y 1

24 29120005101 固定支架 Bracket Y 1

25 4041000958 U形螺栓LGB159-03040 U-bolt Y 1

26 4013000007 螺母GB6170-M10EpZn-8 Nut Y 2

27 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 2

28 4011000447 螺栓GB16674-M10*20EpZn-8.8 Bolt Y 2

29 29120005091 多路阀进油钢管 Pipe Y 1

30 4041000774 螺塞LGB135-01422 Plug Y 2

31 4041000767 O形圈LGB168-11124 O-ring Y 2

32 4011000263 螺栓GB5782-M12*130EpZn-8.8 Bolt Y 2

33 4030000031 O形圈GB3452.1-42.5*3.55G O-ring Y 1
